TL-SF1005LP is a 5 10/100 Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
TP-LINK

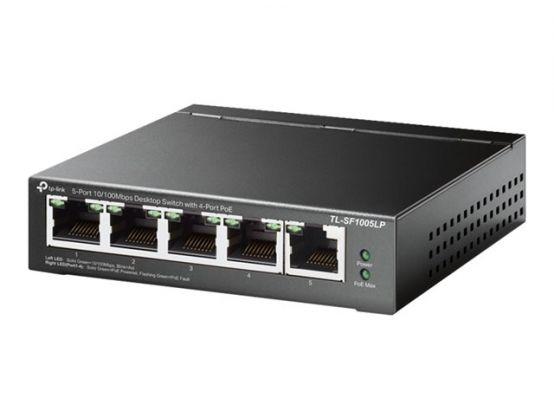

TP-Link TL-SF1005LP - V1 - switch - unmanaged - 5 x 10/100 (4 PoE) - desktop, wall-mountable - PoE (41 W)
SKU
1TNETNHS-028144
Manufacture#: TL-SF1005LP
£24.24
£29.09 inc VAT
Order by 15:00 and receive your order on Monday 3 Mar
Product details
- V1
- switch
- unmanaged
- 5 x 10/100 (4 PoE)

Payment options available at checkout
Overview
Specification
Product Description
TP-Link TL-SF1005LP - V1 - switch - 5 ports - unmanaged
Device Type
Switch - 5 ports - unmanaged
Subtype
Fast Ethernet
Ports
5 x 10/100 (4 PoE)
Power Over Ethernet (PoE)
PoE
PoE Budget
41 W
Performance
Packet forwarding rate: 0.744 Mpps ¦ Switching capacity: 1 Gbps
MAC Address Table Size
2K entries
Jumbo Frame Support
2KB
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless, metal housing, priority mode, extend mode, security slot (Kensington security lock compatible), Intelligent Power Management
Compliant Standards
IEEE 802.3af, IEEE 802.3x
Dimensions (WxDxH)
10 cm x 9.8 cm x 2.5 cm
Extended Specification
General
Device Type
Switch - 5 ports - unmanaged
Enclosure Type
Desktop, wall-mountable
Subtype
Fast Ethernet
Ports
5 x 10/100 (4 PoE)
Power Over Ethernet (PoE)
PoE
PoE Budget
41 W
Performance
Packet forwarding rate: 0.744 Mpps ¦ Switching capacity: 1 Gbps
MAC Address Table Size
2K entries
Jumbo Frame Support
2KB
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless, metal housing, priority mode, extend mode, security slot (Kensington security lock compatible), Intelligent Power Management
Compliant Standards
IEEE 802.3af, IEEE 802.3x
Expansion / Connectivity
Interfaces
5 x 100Base-TX RJ-45 4 ports (PoE) - 15.4 W
Power
Power Device
External power adapter
Power Provided
53.5 V - 0.81 A
Power Consumption Operational
47 Watt
Miscellaneous
Compliant Standards
Plug and Play, FCC, RoHS
Dimensions & Weight
Width
10 cm
Depth
9.8 cm
Height
2.5 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
