Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4 laptop to enable single-display 4K 60Hz HDMI 2.0b or 1080p 60Hz VGA video output via DP Alt Mode. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.
StarTech.com

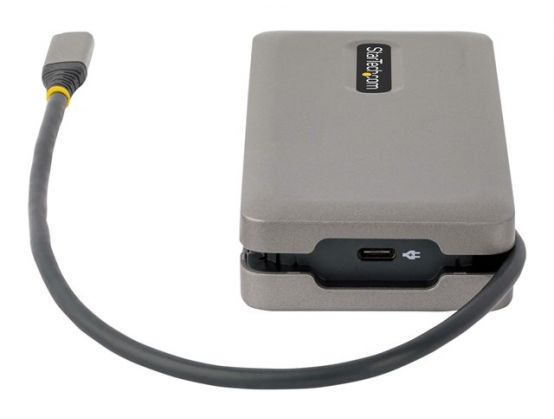

StarTech.com USB-C Multiport Adapter, HDMI/VGA, 4K 60Hz Video, 3-Port USB Hub, 100W Power Delivery Pass-Through, GbE, USB Type-C Travel Dock w/ Charging, 1ft/30cm Wrap-Around Cable - Mini Laptop Docking Station (DKT31CVHPD3) - Docking station - USB-C - HD
SKU
1TACCNOA-006076
Manufacture#: DKT31CVHPD3
£26.70
£32.04 inc VAT
Order by 15:00 and receive your order on Tuesday 4 Mar
Product details
- Mini Laptop Docking Station (DKT31CVHPD3)
- Docking station
- USB-C
- HDMI, VGA
Payment options available at checkout
Overview
Specification
Product Description
StarTech.com USB-C Multiport Adapter, HDMI/VGA, 4K 60Hz Video, 3-Port USB Hub, 100W Power Delivery Pass-Through, GbE, USB Type-C Travel Dock w/ Charging, 1ft/30cm Wrap-Around Cable - Mini Laptop Docking Station (DKT31CVHPD3) - docking station - USB-C - HDMI, VGA - 1GbE
Product Type
Docking station
Docking Interface
USB-C
Video Interfaces
HDMI, VGA
Dimensions (WxDxH)
6.4 cm x 12.4 cm x 2.5 cm
Weight
130 g
Colour
Space grey
Networking
Gigabit Ethernet
Power
Power adapter 16 Watt Power Provided
Manufacturer Warranty
3-year warranty
Extended Specification
General
Product Type
Docking station
Width
6.4 cm
Depth
12.4 cm
Height
2.5 cm
Weight
130 g
Enclosure Colour
Space grey
Video
Max Resolution Details
4096 x 2160 - 60 Hz (HDMI only) ¦ 1920 x 1200 - 60 Hz (VGA only) ¦ 1920 x 1080 - 60 Hz (VGA only)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Compliant Standards
USB 3.2 Gen 2
Expansion / Connectivity
Interfaces
1 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 2 x USB-C 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C (power only) ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
Miscellaneous
Cables Included
1 x USB-C 3.2 Gen 2 cable - integrated - 30 cm
Features
Up to 10Gbps data transfer, Preboot Execution Environment (PXE) support, full duplex support, 100W power delivery (pass-through), plastic housing, 84W charging, 2 LED indicators, wake on LAN, DisplayPort Alt Mode
Compliant Standards
DisplayPort 1.4, RoHS, WEEE, RCM
Power
Power Device
Power adapter
Power Provided
16 Watt
System Requirements
OS Required
Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Ubuntu 18.04, Ubuntu 20.04, Google Chrome OS, Apple macOS 10.15, Apple macOS 11, Apple macOS 12, Apple macOS 13.0, Android, Linux
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Width
14.2 cm
Shipping Depth
17 cm
Shipping Height
3 cm
Shipping Weight
154 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
