StarTech.com

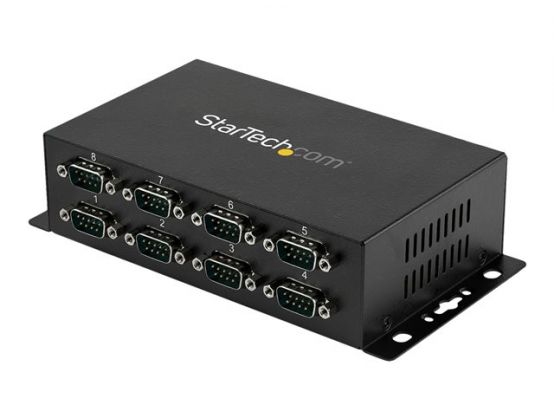

StarTech.com 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - serial adapter - USB 2.0 - RS-232 x 8

Name: StarTech.com 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - serial adapter - USB 2.0 - RS-232 x 8
Brand: StarTech.com
SKU: 1TCPTUSB-001062
Price: 197.65 GBP
Availability: InStock

SKU

1TCPTUSB-001062

Manufacture#: ICUSB2328I

Be the first to review this product

£164.71

£197.65 inc VAT

Order by 15:00 and receive your order on Wednesday 5 Feb

Product details

Wall Mount
Din Rail
COM Port Retention
FTDI USB to DB9 RS232 Hub (ICUSB2328I)

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

StarTech.com 8 Port USB to Serial RS232 Adapter
Wall Mount
Din Rail
COM Port Retention
FTDI USB to DB9 RS232 Hub (ICUSB2328I)
Serial adapter
USB 2.0
RS-232 x 8
black

Overview

8 Port USB to DB9 RS232 Serial Adapter Hub – Wall Mountable (ICUSB2328I).

Easy plug and play installation, with our USB Powered adapter - no power outlet required
Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
Rugged all-metal enclosure for added durability in harsh environments

Specification

Product Description StarTech.com 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - serial adapter - USB 2.0 - RS-232 x 8

Device Type Serial adapter

Form Factor DIN rail mountable

Interface (Bus) Type USB 2.0

Ports RS-232 x 8

Dimensions (WxDxH) 9.72 cm x 17.35 cm x 4.32 cm

Weight 950 g

Data Link Protocol RS-232

Data Transfer Rate 921.6 Kbps

Processor FTDI FT232RL

Colour Black

System Requirements Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Microsoft Windows 11, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux Kernel 3.0 or later, Linux LTS versions only

Manufacturer Warranty 2-year warranty

General

Device Type Serial adapter

Form Factor DIN rail mountable

Interface (Bus) Type USB 2.0

Networking

Ports RS-232 x 8

Connectivity Technology Wired

Data Link Protocol RS-232

Data Transfer Rate 921.6 Kbps

Status Indicators Port status, transmit, receive

Features USB powered, wall mountable, DIN rail mountable

Processor / Memory

Processor FTDI FT232RL

Expansion / Connectivity

Interfaces 8 x RS-232 - 9 pin D-Sub (DB-9) - male

Miscellaneous

Cables Included 1 x USB-A to USB-B cable (external) - 1.83 m

Mounting Kit Included

Compliant Standards FCC, RoHS

Colour Black

Power

Power Device Power adapter - external

Software / System Requirements

Software Included Drivers & Utilities

OS Required Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Microsoft Windows 11, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux Kernel 3.0 or later, Linux LTS versions only

Dimensions & Weight

Width 9.72 cm

Depth 17.35 cm

Height 4.32 cm

Weight 950 g

Manufacturer Warranty

Service & Support Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 55 °C

Humidity Range Operating 5 - 95%
