Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco ; HPE ; and Aruba .
StarTech.com

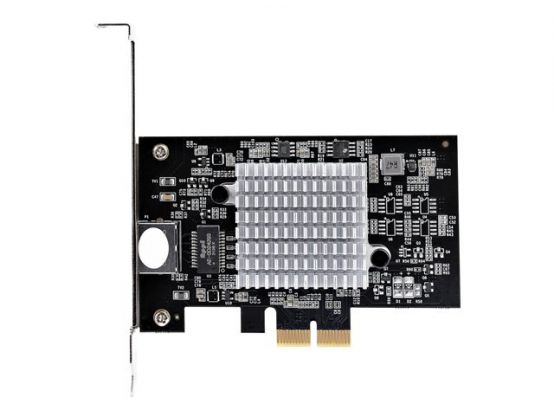

StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Low Profile PCIe Ethernet Card w/Jumbo Frame Support, NIC/LAN Interface Card - Marvell AQC113CS Chipset, PXE Boot (ST10GSPEXNB2) - Network adapter - PCIe 3.0 x2 - 10 Gigabit
SKU
1TNETNIC-005697
Manufacture#: ST10GSPEXNB2
£145.69
£174.83 inc VAT
Order by 15:00 and receive your order on Tuesday 4 Mar
Product details
- Marvell AQC113CS Chipset, PXE Boot (ST10GSPEXNB2)
- Network adapter
- PCIe 3.0 x2
- 10 Gigabit Ethernet x 1
Payment options available at checkout
Overview
Specification
Product Description
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Low Profile PCIe Ethernet Card w/Jumbo Frame Support, NIC/LAN Interface Card - Marvell AQC113CS Chipset, PXE Boot (ST10GSPEXNB2) - network adapter - PCIe 3.0 x2 - 10 Gigabit Ethernet x 1
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 3.0 x2
PCI Specification Revision
PCIe 3.0, PCIe 4.0
Ports
10 Gigabit Ethernet x 1
Dimensions (WxDxH)
1.5 cm x 10.6 cm x 5.6 cm
Weight
73 g
Cabling Type
NBase-T
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 5GbE, 10GbE
Data Transfer Rate
10 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP
Processor
1 x Marvell AQC113CS
Compliant Standards
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az
Colour
Black
System Requirements
Windows 8 / 10 / 11, Linux 3.10.x or later LTS versions only
Manufacturer Warranty
2-year warranty
Extended Specification
General
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 3.0 x2
PCI Specification Revision
PCIe 3.0, PCIe 4.0
Networking
Ports
10 Gigabit Ethernet x 1
Connectivity Technology
Wired
Cabling Type
NBase-T
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate
10 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP
Status Indicators
Link/activity
Features
Auto MDIX, PXE boot, full duplex capability, 16 KB Jumbo Frame, AVB, VLAN Tagging, EEE, secure boot
Compliant Standards
IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az
Processor / Memory
Processor
1 x Marvell AQC113CS
Expansion / Connectivity
Interfaces
1 x 100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45
Miscellaneous
Included Accessories
Low-profile bracket
Compliant Standards
RoHS, RCM
Colour
Black
Software / System Requirements
OS Required
Windows 8 / 10 / 11, Linux 3.10.x or later LTS versions only
Dimensions & Weight
Width
1.5 cm
Depth
10.6 cm
Height
5.6 cm
Weight
73 g
Dimensions & Weight (Shipping)
Shipping Width
3.5 cm
Shipping Depth
21 cm
Shipping Height
14.5 cm
Shipping Weight
151 g
Manufacturer Warranty
Service & Support
Limited warranty - 2 years ¦ Technical support - assistance - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
60 °C
