Unleash the power of the Samsung PCIe 4.0 NVMe SSD 980 PRO for your next-level computing. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate of PCIe 3.0 while being backward-compatible for PCIe 3.0 for added versatility.¦Powered by Samsung custom Elpis Controller for PCIe 4.0 SSD, the 980 PRO is optimized for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs. The 980 PRO achieves maximum speeds on PCIe 4.0 and may vary in other environments.
SAMSUNG

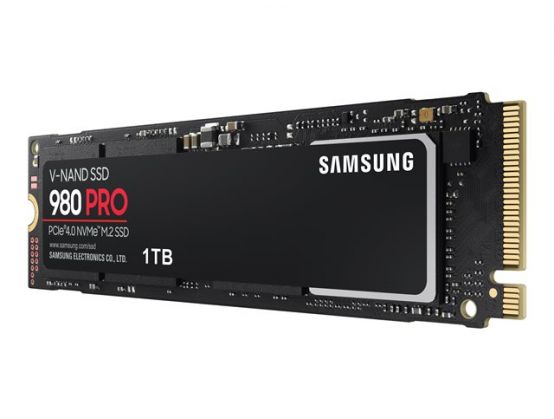

SSD 980 PRO 1TB M.2 NVME SSD
SKU
1TSTOSTO-032598
Manufacture#: MZ-V8P1T0BW
£113.12
£135.74 inc VAT
Order by 15:00 and receive your order on Friday 11 Apr
Product details
- SSD
- encrypted
- 1 TB
- internal
Payment options available at checkout
Overview
Specification
Product Description
Samsung 980 PRO MZ-V8P1T0BW - SSD - 1 TB - PCIe 4.0 x4 (NVMe)
Type
Solid state drive - internal
Capacity
1 TB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
Form Factor
M.2 2280
Interface
PCIe 4.0 x4 (NVMe)
Buffer Size
1 GB
Features
NVM Express (NVMe) 1.3c, TurboWrite Technology, Samsung Elpis Controller, Samsung V-NAND 3bit MLC Technology, TRIM support, Auto Garbage Collection Algorithm, sleep mode, Low Power DDR4 SDRAM Cache, S.M.A.R.T.
Dimensions (WxDxH)
22.15 mm x 80.15 mm x 2.38 mm
Weight
9 g
Manufacturer Warranty
5-year warranty
Designed For
Intel Next Unit of Computing 12 Enthusiast Mini PC - NUC12SNKi72VA, 13 Extreme Kit - NUC13RNGi5, 13 Extreme Kit - NUC13RNGi7
Extended Specification
General
Device Type
Solid state drive - internal
Capacity
1 TB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
Form Factor
M.2 2280
Interface
PCIe 4.0 x4 (NVMe)
Buffer Size
1 GB
Features
NVM Express (NVMe) 1.3c, TurboWrite Technology, Samsung Elpis Controller, Samsung V-NAND 3bit MLC Technology, TRIM support, Auto Garbage Collection Algorithm, sleep mode, Low Power DDR4 SDRAM Cache, S.M.A.R.T.
Width
22.15 mm
Depth
80.15 mm
Height
2.38 mm
Weight
9 g
Performance
SSD Endurance
600 TB
Internal Data Rate
7000 MBps (read) / 5000 MBps (write)
4KB Random Read
22000 IOPS
4KB Random Write
60000 IOPS
Maximum 4KB Random Write
1000000 IOPS
Maximum 4KB Random Read
1000000 IOPS
Reliability
MTBF
1,500,000 hours
Expansion & Connectivity
Interfaces
PCI Express 4.0 x4 (NVMe) - M.2 Card
Compatible Bay
M.2 2280
Power
Power Consumption
6.2 Watt (average) ¦ 8.9 Watt (maximum) ¦ 0.035 Watt (idle)
Software & System Requirements
Software Included
Samsung Magician Software
Miscellaneous
Compliant Standards
IEEE 1667
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Shock Tolerance (operating)
1500 g @ 0.5 ms
Compatibility Information
Designed For
Intel Next Unit of Computing 12 Enthusiast Mini PC - NUC12SNKi72VA, 13 Extreme Kit - NUC13RNGi5, 13 Extreme Kit - NUC13RNGi7
