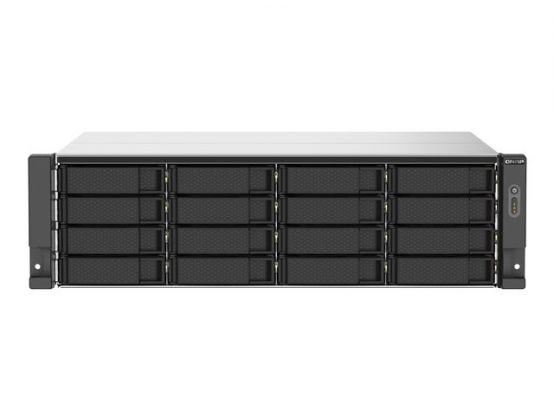

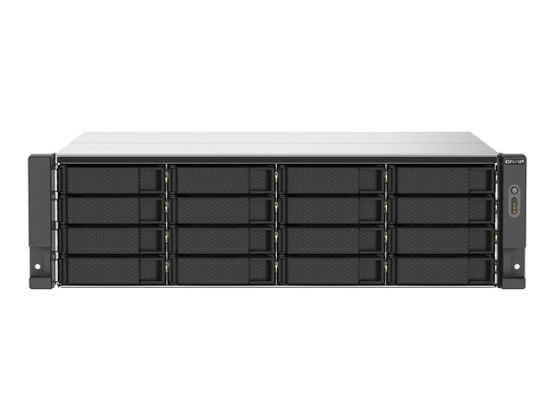

QNAP TS-1673AU-RP - NAS server - 16 bays - rack-mountable - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare - RAM 16 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support - 3U

Name: QNAP TS-1673AU-RP - NAS server - 16 bays - rack-mountable - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare - RAM 16 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support - 3U
Brand: QNAP
SKU: 1TSTOHDA-007346
Price: 3292.91 GBP
Availability: InStock

SKU

1TSTOHDA-007346

Manufacture#: TS-1673AU-RP-16G

Be the first to review this product

£2744.09

£3292.91 inc VAT

Order by 15:00 and receive your order on Tuesday 11 Mar

Product details

NAS server
16 bays
rack-mountable
SATA 6Gb/s

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

QNAP TS-1673AU-RP
NAS server
16 bays
rack-mountable
SATA 6Gb/s
RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare
RAM 16 GB
Gigabit Ethernet / 2.5 Gigabit Ethernet
iSCSI support
3U

Overview

With its powerful AMD Ryzen V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1673AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1673AU-RP the preeminent choice to tackle resource-demanding applications and tasks.

Specification

Product Description QNAP TS-1673AU-RP - NAS server

Device Type NAS server

Host Connectivity Gigabit Ethernet / 2.5 Gigabit Ethernet

Enclosure Type Rack-mountable - 3U

Installed Devices / Modules Qty 0 (installed) / 16 (max)

Dimensions (WxDxH) 43.2 cm x 37.2 cm x 13.2 cm

Weight 12 kg ()

Processor 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core)

Storage Controller RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare

Networking 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE

RAM 16 GB

Power AC 120/230 V (50/60 Hz)

Power Redundancy Yes

Storage Operating System QNAP QTS 4.4.2

System Requirements UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10

General

Device Type NAS server

Host Connectivity Gigabit Ethernet / 2.5 Gigabit Ethernet

Enclosure Type Rack-mountable - 3U

Total Storage Capacity 0 GB

Installed Devices / Modules Qty 0 (installed) / 16 (max)

Width 43.2 cm

Depth 37.2 cm

Height 13.2 cm

Weight 12 kg ()

Processor / Memory

Processors Installed 1 x AMD Ryzen Embedded V1500B 2.2 GHz

Number of Cores Quad-Core

Max Supported Qty 1

RAM 16 GB (installed) / 32 GB (supported) - DDR4

Flash Memory Installed 5 GB

Storage Controller

Type RAID

Interface Type SATA 6Gb/s

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare

Networking

Data Link Protocol 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE

Network / Transport Protocol TCP/IP, PPTP, UDP/IP, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS

Remote Management Protocol SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH

Network Services Compatibility Microsoft Active Directory (AD), Apple Bonjour Protocol, DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV)

Features NAT support, trunking, LDAP support, wake on LAN (WOL), Syslog support, E-mail alert, print server, IPv6 support, Spanning Tree Protocol (STP) support, download client, file sharing, Trivial File Transfer Protocol (TFTP) support, SSH support, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, UPnP Media Server, bandwidth control, surveillance station, teaming support, DLNA Media Server, Apple Time Machine compatible, DHCP client, e-mail notification, cloud backup, VPN Server, Apple AirPlay, event notification, push notification, Chromecast support

Encryption Algorithm SSL, FIPS 140-2, 256-bit AES, AES-NI

Compliant Standards UPnP

Expansion / Connectivity

Expansion Bays 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots 2 (total) / 1 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4

Interfaces 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 1 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 3.2 Gen 2 - Type C ¦ 1 x USB 3.2 Gen 2 - Type A

Miscellaneous

Cables Included 1 x network cable

Features Audible alarm, wake on LAN

Included Accessories 48 x flat head screws (for 2.5" HDD), 64 x flat head screws (for 3.5" HDD), 2 x power cables

Power

Power Device Internal power supply

Installed Qty 2

Max Supported Qty 2

Power Redundancy Yes

Voltage Required AC 120/230 V (50/60 Hz)

Power Consumption Operational 97.34 Watt

Power Consumption Stand by 47.75 Watt

Power Provided 550 Watt

Software / System Requirements

Storage Operating System QNAP QTS 4.4.2

OS Required UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10

Dimensions & Weight (Shipping)

Shipping Weight 17.15 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 5 - 95% (non-condensing)
