General
Device Type

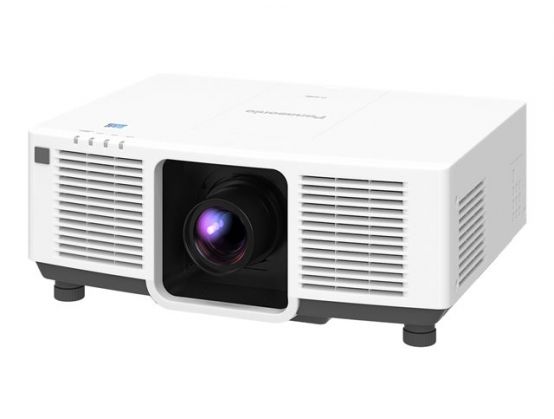

LCD projector - 1080p
Networking
Ethernet
Projector
Brightness
8000 lumens
Brightness (Reduced)
5600 lumens
Contrast Ratio
3000000:1 (dynamic)
Image Size
102 cm - 1016 cm
Throw Ratio
1.61 - 2.76:1
Uniformity
85 %
Resolution
WUXGA - WUXGA (1920 x 1200)
Native Aspect Ratio
16:10
Display Format
2,304,000 pixels (1920 x 1200) x 3
Bulb type
Laser diode
Bulb life cycle
Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode
Controls & Adjustments
Keystone correction, lens shift dial (horizontal), lens shift dial (vertical)
Features
Edge blending, High-bandwidth Digital Content Protection System (HDCP), Deep Color, PJlink, Geometric Adjustment, Detail Clarity Processor 4, Digital Link
Lens
Type
Standard lens
Focus Type
Powered
Lens Aperture
F/1.7-2.3
Zoom Type
Powered
Keystone Correction Direction
Horizontal, vertical
Vertical Keystone Correction
-25 / +25
Horizontal Keystone Correction
-30 / +30
Lens Shift Direction
Horizontal, vertical
Vertical Lens Shift
67% / 67%
Horizontal Lens Shift
35% / 35%
Video Input
Video Interfaces
HDMI, component video, RGB, DIGITAL LINK
LAN and Wireless Image Transferring Protocols
Wired LAN
Expansion / Connectivity
Interfaces
1 x USB - 4 pin USB Type A ¦ 1 x network - RJ-45 ¦ 1 x DIGITAL LINK - RJ-45 ¦ 3 x HDMI input - 19 pin HDMI Type A ¦ 1 x remote control input - 9 pin D-Sub (DB-9) (management) ¦ 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) (management) ¦ 1 x component video / RGB output - 15 pin HD D-Sub (HD-15) ¦ Audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x remote control input - mini-phone 3.5 mm (management)
Miscellaneous
Included Accessories
2 x AAA batteries, remote control, double packing case
Security Features
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
Compliant Standards
CEC, ISO/IEC 21118:2020
Power
Power Source
AC
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
490 Watt
Power Consumption Stand by
0.5 Watt
Software / System Requirements
Software Included
Logo Transfer Software, Multi Projector Monitoring & Control Software, Early Warning Software, Smart Projector Control App, Geometry Manager Pro
Dimensions & Weight
Width
56.1 cm
Depth
43.7 cm
Height
22.4 cm
Weight
18.6 kg
Dimensions & Weight (Shipping)
Shipping Width
75.6 cm
Shipping Depth
54.5 cm
Shipping Height
34.8 cm
Shipping Weight
24.9 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
20 - 80% (non-condensing)
Sound Emission
34 dB
Sound Emission (Economic Mode)
27 dB
