MSI

MB INT PRO Z790-P WIFI DDR5

Name: MB INT PRO Z790-P WIFI DDR5
Brand: MSI
SKU: 1TCPTMOT-004475
Price: 197.39 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004475

Manufacture#: PRO Z790-P WIFI

Be the first to review this product

£164.49

£197.39 inc VAT

Order by 15:00 and receive your order on Monday 10 Mar

Product details

Motherboard
ATX
LGA1700 Socket
Z790 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

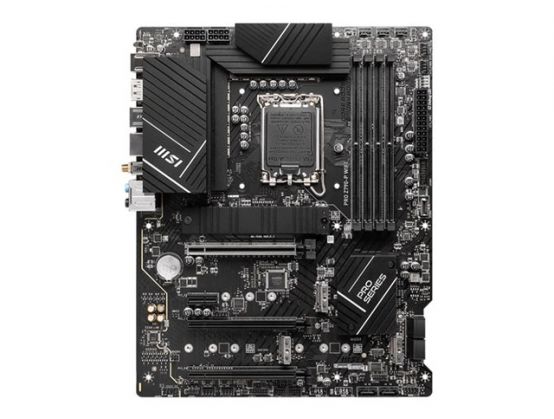

MSI PRO Z790-P WIFI
Motherboard
ATX
LGA1700 Socket
Z790 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

PRO Z790-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

Specification

Product Description MSI PRO Z790-P WIFI - motherboard - ATX - LGA1700 Socket - Z790

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 6 x SATA-600 (RAID), 4 x M.2

USB / FireWire Ports 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

General

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR5

Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC897

Compliant Standards High Definition Audio

LAN

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x USB 3.2 Gen 2 ¦ 1 x PS/2 keyboard / mouse

Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Features MSI ClickBIOS 5

Hardware Features MSI Audio Boost, Debug LED, 6 Layer PCB, MSI Steel Armor, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, 14+1+1 Phase Power Design, Windows 11 compatible, Surface Mount Technology (SMT)

Miscellaneous

Included Accessories I/O back plate, Wi-Fi aerial, 3 x M.2 clips

Cables Included 2 x Serial ATA cable

Software Included Drivers & Utilities

Width 30.48 cm

Depth 24.384 cm
