MSI

MB AMD MPG B650I EDGE WIFI

Name: MB AMD MPG B650I EDGE WIFI
Brand: MSI
SKU: 1TCPTMEM-027714
Price: 224.11 GBP
Availability: InStock

SKU

1TCPTMEM-027714

Manufacture#: MPG B650I EDGE WIFI

Be the first to review this product

£186.76

£224.11 inc VAT

Order by 15:00 and receive your order on Tuesday 11 Mar

Product details

Motherboard
mini ITX
Socket AM5
AMD B650 Chipset

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

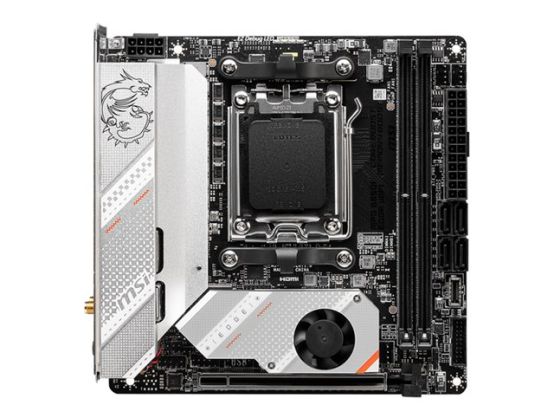

MSI MPG B650I EDGE WIFI
Motherboard
mini ITX
Socket AM5
AMD B650 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Specification

Product Description MSI MPG B650I EDGE WIFI - motherboard - mini ITX - Socket AM5 - AMD B650

Product Type Motherboard - mini ITX

Chipset Type AMD B650 / Nuvoton NCT6687-R

Processor Socket 1 x Socket AM5

Compatible Processors Ryzen (supports Ryzen 7000 Series)

Max RAM Size 64 GB

RAM Supported 2 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Manufacturer Warranty 3-year warranty

General

Product Type Motherboard - mini ITX

Chipset Type AMD B650 / Nuvoton NCT6687-R

Processor Socket Socket AM5

Max Processors Qty 1

Compatible Processors Ryzen (supports Ryzen 7000 Series)

Supported RAM

Max Size 64 GB

Technology DDR5

Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, AMD EXPO technology

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC4080

Compliant Standards High Definition Audio

LAN

Network Controller Realtek RTL8125BG

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 1 x PCIe 4.0 x16 ¦ 2 x DIMM 288-pin

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1

Interfaces 1 x HDMI ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial

Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Features MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support

Hardware Features Clear CMOS Button, Debug LED, MSI Mystic Light, MSI Steel Armor, Game Boost, overvoltage protection, 10 Layer PCB, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, 8+2+1 Phase Power Design, MSI Audio Boost 5

Miscellaneous

Included Accessories 3 x M.2 screws, Rainbow RGB LED extension cable, Wi-Fi aerial, cable stickers

Cables Included 2 x Serial ATA cable

Software Included Drivers & Utilities, AIDA64 Extreme (60 days trial)

Compliant Standards SMBIOS 3.5

Width 17 cm

Depth 17 cm

Manufacturer Warranty

Service & Support Limited warranty - 3 years
