video conferencing kit (mini-PC XC13T, touch control panel TCP20T)
Certified for Microsoft Teams Rooms
Overview

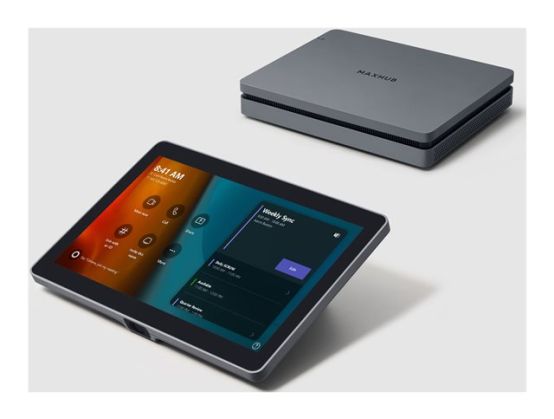

Elevate your focus and small BYOD meeting spaces with the MAXHUB XCore Kit, a certified entry-level Microsoft Teams solution that includes a console and a mini-PC.
Product DescriptionMAXHUB XCore Kit - for Microsoft Teams Rooms - video conferencing kit
Device TypeVideo conferencing kit
Kit ContentMini-PC XC13T, touch control panel TCP20T
Display10.1" 1920 x 1200
Input Device10.1" touchscreen (wired)
PC Configuration12th Gen Core i3, 8GB RAM, 128GB SSD
NetworkingNetwork adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
PowerAC 100-240 V (50/60 Hz)
Software CertificationCertified for Microsoft Teams Rooms
System RequirementsWindows 11 IoT Enterprise SAC
Manufacturer Warranty3-year warranty
Extended Specification
General
Device TypeVideo conferencing kit
Kit ContentMini-PC XC13T, touch control panel TCP20T
Dimensions & Weight DetailsMini-PC - Width 23 cm Depth 18.5 cm Height 4.15 cm Weight 1.36 kg ¦ Touch screen - Width 24.5 cm Depth 7.74 cm Height 16.43 cm Weight 880 g
Built-in DevicesPIR sensor
Display
Diagonal Size10.1"
Native Resolution1920 x 1200
Image Brightness300 cd/m²
Monitor FeaturesLED-backlit, anti-glare, 10-point multi-touch, anti-fingerprint, capacitive touch screen, Auto Wake
Video Output
PC Configuration12th Gen Core i3, 8GB RAM, 128GB SSD
Input Device
Type10.1" touchscreen
Connectivity TechnologyWired
FeaturesCapacitance Touch Sensor, LED backlight, 1920 x 1200 resolution, security slot (Kensington security lock compatible)
Networking
TypeNetwork adapter
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Interfaces4 x USB-A - SuperSpeed USB 3.0 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C - console - 24 pin USB-C ¦ 1 x audio / video - HDMI output ¦ 1 x audio - output ¦ 1 x audio / video - HDMI input ¦ 1 x USB-A - USB 2.0 ¦ 1 x USB-C - USB 3.1 - 24 pin USB-C ¦ 1 x headphones - output - 3.5mm audio jack
Miscellaneous
Cables Included1 x USB-C to USB-C cable - 1.8 m ¦ 2 x HDMI cable - 1.8 m
Included AccessoriesWall bracket, PC bracket, cable cover, 2 cable cover screws, 4 machine screws, 4 expansion screws, 4 self-tapping screws
Software CertificationCertified for Microsoft Teams Rooms
