The VC-A71PN is equipped with NDI|HX allowing the camera to deliver and receive high video quality with ultra-low latency, which utilizes NDI-based video production workflows without additional configuration, reducing cost and shortens installation time frames. NDI|HX is also suitable for switching in a live production environment which simplify live streaming process.¦Thanks to the professional 1/1.8 type progressive CMOS sensor with 8-megapixel output resolution, the VC-A71PN delivers an extremely clear and vivid live image effortlessly. Quick and near-silent PTZ operations with the superior 30x optical zoom capability in 4K accommodates wide-angle scenes and tightly framed close-ups. The camera provides outstanding video performance and displays details even in the low light conditions without any distortion.¦The VC-A71PN can empower users to build more agile, flexible and affordable systems that provide live productions with more freedom. It is a perfect choice for NDI-powered video production workflows.
LUMENS

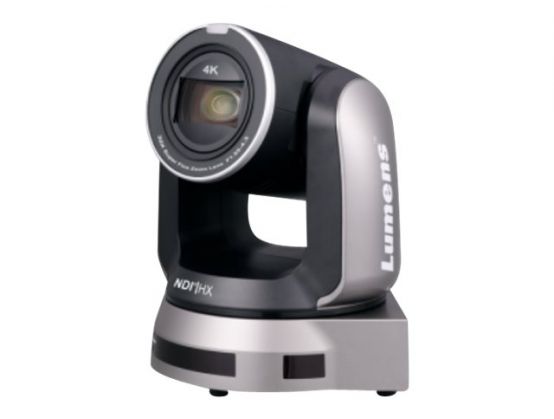

Lumens VC-A71PN - conference camera
SKU
1TENTRMM-007265
Manufacture#: VC-A71PNB
£2941.44
£3529.73 inc VAT
Order by 15:00 and receive your order on Monday 3 Mar
Product details
- Conference camera
- PTZ
- colour
- 9.17 MP

Payment options available at checkout
Overview
Specification
Product Description
Lumens VC-A71PN - conference camera
Device Type
Conference camera - pan / tilt / zoom
Audio
Yes
Dimensions (WxDxH)
18.8 cm x 18.9 cm x 23.2 cm
Weight
3 kg
Colour
Black
Connectivity Technology
Wired
Camera
Colour
Optical Zoom
30 x
Frame Rate (max)
60 frames per second
Video Modes
1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/25p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 4K, 2160/29.97p, 2160/59.94p
Optical Sensor Type
CMOS - 1/1.8" - 9.17 MP
Minimum Illumination
0.05 lux F1.6 - 50 IRE
Focal Length
6.5 mm - 202 mm
Focus Adjustment
Automatic, manual (min distance 1.5 m)
Lens Iris
F/1.6-4.8
Panning Range (degree)
-170 to +170
Tilting Range (degree)
-30 to +90
Interfaces
SDI, HDMI, Ethernet 10Base-T/100Base-TX
Control Interface
RS-422, RS-232, VISCA
Voltage
DC 12 V / PoE Plus
Features
Manual white balance, manual exposure, auto exposure control, image flip, Wide Dynamic Range (WDR), 3D Noise Reduction Technology, 256 preset positions, manual gain control, auto gain control, auto white balance, Pelco Protocol, built-in NDI, tally light
Manufacturer Warranty
5-year warranty
Extended Specification
General
Device Type
Conference camera
Audio Support
Yes
Audio Formats
AAC
Connectivity Technology
Wired
Width
18.8 cm
Depth
18.9 cm
Height
23.2 cm
Weight
3 kg
Camera
Type
Colour - pan / tilt / zoom
Digital Video Format
H.264, HEVC
Video Modes
1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/25p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 4K, 2160/29.97p, 2160/59.94p
Digital Zoom
12
Exposure Range
1/1 sec - 1/10000 sec
Minimum Illumination
0.05 lux F1.6 - 50 IRE
Frame Rate (max)
60 frames per second
Features
Manual white balance, manual exposure, auto exposure control, image flip, Wide Dynamic Range (WDR), 3D Noise Reduction Technology, 256 preset positions, manual gain control, auto gain control, auto white balance, Pelco Protocol, built-in NDI, tally light
Image Sensor
Type
9.17 MP CMOS 1/1.8"
Lens Construction
Optical Zoom
30 x
Focal Length
6.5 mm - 202 mm
Lens Iris
F/1.6-4.8
Focus Adjustment
Automatic, manual
Min Focus Distance
1.5 m
Horizontal Field of View (degree)
63
Panning
Range (degree)
-170 to +170
Speed (degree/sec)
Up to 300
Tilting
Range (degree)
-30 to +90
Speed (degree/sec)
Up to 300
Interfaces
Video
SDI, HDMI
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
RTSP, RTMP
Control Interface
RS-422, RS-232, VISCA
Expansion / Connectivity
Ports
LAN/power ¦ HDMI ¦ Serial RS-232 input - 8 pin mini-DIN ¦ Serial RS-232 output - 8 pin mini-DIN ¦ Serial RS-422 - terminal block ¦ Audio line-in/microphone - 3.5 mm jack
Miscellaneous
Colour
Black
Power
Power Requirements
DC 12 V / PoE Plus
Power Device
Power adapter 16 Watt
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
