Simplified collaboration for education and business. The TE8612MIS-B2AG from iiyama offers enormous possibilities in all phases of education and is also a perfect solution for start-ups and large companies. With this hybrid interactive solution, you can create content in 4K UHD (3840x2160) resolution and control it on the display from multiple sources.¦The 40-point PureTouch-IR touchscreen with iiWare 10 (Android 11 operating system) is equipped with features such as Notes, Browser, Cloud Drive, and offers sideload capability for the most important business applications. The device is equipped with dual-function touch pens, and notes and screen content can also be easily saved directly to a USB device, internal storage, or a selected cloud drive. The USB-C connection allows simultaneous transmission of video, audio and touch signals via a single cable, while the external end device (such as notebook) is charged with 65W power.¦With a brightness of 400 cd/m2, this 86-inch LCD screen with VA technology delivers vivid, detailed, high-quality images that can be seen from any position in the classroom or conference room. The anti-reflective coating dramatically reduces ambient glare in high brightness environments without compromising image sharpness and clarity.¦You can be assured that iiyama has the right solution for every interactivity need. With an interface with customized user profiles, allowing quick and easy access to your personal menu and cloud drives, the TE8612MIS-B2AG becomes a high-quality customized solution in hybrid environments designed to serve multiple users.
IIYAMA

IIYAMA PROLITE 86" Interactive 4K UHD Touchscreen featuring a 4K interface with User Profiles Black 3840 x 2160 400cd/m2 1x VGA 3x HDMI 1x USB-C VESA 800 x 600
SKU
1TDSPMON-035753
Manufacture#: TE8612MIS-B2AG
£1680
£2016.00 inc VAT
Order by 15:00 and receive your order on Monday 28 Apr
Product details
- 86" Diagonal Class (85.6" viewable) LCD flat panel display
- interactive digital signage
- with touchscreen
- 4K UHD (2160p) 3840 x 2160

Payment options available at checkout
Overview
Specification
Product Description
iiyama ProLite TE8612MIS-B2AG 86" Class (85.6" viewable) LCD flat panel display - 4K - for digital signage / interactive communication
Product Type
LCD flat panel display with touchscreen
Diagonal Class
86"
Diagonal Size
85.6"
Commercial Use
Yes - interactive digital signage
Colour
Black, matte
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Frame Rate & Enhancement Technology
60 Hz Refresh Rate
Video Interface
HDMI, USB-C
HDMI Ports Qty
3 ports
Connectivity
Wi-Fi, LAN
PC Interface
VGA (HD-15), HDMI
Technology
VA
Image Aspect Ratio
16:9
TV Tuner
No tuner
Speaker System
2 speakers
Storage Capacity
32 GB
USB
Yes
Included Accessories
Remote control, 4 touch pens, Wi-Fi module (OWM002), NUC mounting bracket, webcam mounting bracket
Voltage
AC 100-240 V (50/60 Hz)
Power Consumption Operational
222 Watt
Power Consumption Stand by
0.5 Watt
Dimensions (WxDxH)
195.7 cm x 10 cm x 116 cm
Weight
58.6 kg
Manufacturer Warranty
5-year warranty
Extended Specification
General
Product Type
LCD flat panel display
Power Consumption Operational
222 Watt
Diagonal Class
86"
Diagonal Size
85.6"
Commercial Use
Yes - interactive digital signage
Combined With
Touchscreen
Operating System
Android OS 11
TV Tuner
No tuner
TV Tuner Presence
No
Video Interface
HDMI, USB-C
HDMI Ports Qty
3 ports
PC Interface
VGA (HD-15), HDMI
Modes
Landscape mode, kiosk mode
Design
Fanless Design, Thin Bezel Design
Width
195.7 cm
Depth
10 cm
Height
116 cm
Weight
58.6 kg
Enclosure Colour
Black, matte
Display
LCD Display Technology
VA
Pixel Pitch
0.4935 mm
Colour Support
1070000000 colours
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Image Aspect Ratio
16:9
Frame Rate & Enhancement Technology
60 Hz Refresh Rate
Coating
7H Hard, 25% haze, 3 mm glass
Image Contrast Ratio
4000:1
Dynamic Contrast Ratio
8000:1
Brightness
400 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Touchpoints Qty
40
Response Time
8 ms
Display Menu Language
Czech, English, German, French, Italian, Polish, Russian, Spanish, Dutch
Operation Hours / Days
24 / 7
Features
8-bit support, Frame Rate Control (FRC), PureTouch-IR technology, zero air-gap, blue light reduction, OSD lock, 24/7 operation time, +/- 1.5mm touch accuracy, integrated iiWare 10 software, MTBF 50000 hours, 92% light transmittance
Stands & Mounts
Flat Panel Mount Interface
800 x 600 mm
VESA Compatibility
Yes
Media Player
USB Port
Yes
Configuration
ARM Cortex-A55 Quad-Core - 4 GB - 32 GB - Mali-G52
Remote Control
Type
Remote control
Battery Included
Yes
Audio System
Speaker System
2 speakers
Output Power / Total
32 Watt
Speakers
2 x main channel speaker - 16 Watt
Network & Internet Multimedia
Connectivity
Wi-Fi, LAN
LAN Protocol
Fast Ethernet
Wi-Fi Protocol
802.11b, 802.11g, 802.11n, 802.11a, 802.11ac
Bluetooth Version
Bluetooth 5.0
Connect & Share
EShare, iiyama Share
Connections
Connector Type
3 x HDMI input ¦ USB-C with 65W Power Delivery ¦ VGA input ¦ Audio line-in ¦ RS-232C input ¦ LAN input ¦ Infrared input ¦ HDMI output ¦ SPDIF output ¦ Audio line-out
Miscellaneous
Included Accessories
4 touch pens, Wi-Fi module (OWM002), NUC mounting bracket, webcam mounting bracket
Cables Included

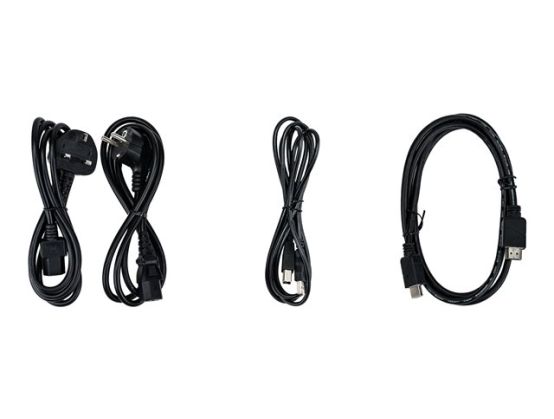

HDMI cable ¦ USB cable
Compliant Standards
Plug and Play, DDC-2B, CB, RoHS, WEEE, REACH, TUV Bauart, ERP, EAC, REACH SvHC
Power
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Power Consumption Stand by
0.5 Watt
Power Consumption (Off Mode)
0.3 Watt
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Dimensions & Weight (Shipping)
Width (Shipping)
211 cm
Depth (Shipping)
22.5 cm
Height (Shipping)
128.3 cm
Weight (Shipping)
75.9 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
