The Elo 1723L 17-inch standard format touchscreen monitor meets the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1723L brings a clean, modern feel to any environment. The zero-bezel monitor is available in both black or white with Elo's industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
The 1723L has been designed for touch from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
ELO

1723L 17-INCH LCD WW BLK VGA 10 TUOCH/USB CNTR ZERO BEZEL IN
SKU
1TDSPMON-028001
Manufacture#: E683457
£565.51
£678.61 inc VAT
Order by 15:00 and receive your order on Monday 3 Mar
Product details
- LED monitor
- 17"
- touchscreen
- 1280 x 1024 @ 75 Hz

Payment options available at checkout
Overview
Specification
Product Description

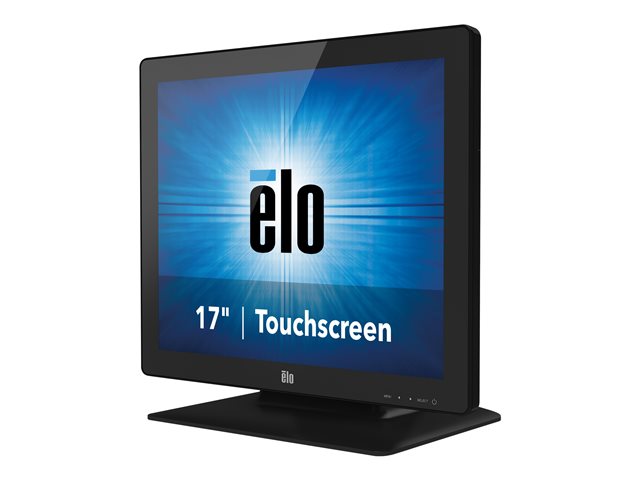

Elo 1723L - LED monitor - 17"
Device Type
LED-backlit LCD monitor - 17" - touchscreen
Features
Touch-screen
Aspect Ratio
5:4
Native Resolution
1280 x 1024 at 75 Hz
Brightness
250 cd/m²
Contrast Ratio
800:1
Response Time
30 ms
Colour Support
16.7 million colours
Input Connectors
DVI, VGA
Display Position Adjustments
Height, tilt
Colour
Black
Dimensions (WxDxH) - with stand
39.19 cm x 20.94 cm x 36.07 cm
Weight
5.21 kg
Compliant Standards
Plug and Play, UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, CoC
Manufacturer Warranty
3-year warranty
Extended Specification
General
Display Type
LED-backlit LCD monitor / TFT active matrix
Diagonal Size
17"
Aspect Ratio
5:4
Native Resolution
1280 x 1024 at 75 Hz
Brightness
250 cd/m²
Brightness w/touchscreen
215 cd/m²
Contrast Ratio
800:1
Colour Support
16.7 million colours
Response Time
30 ms
Vertical Refresh Rate
56 - 75 Hz
Horizontal Refresh Rate
31 - 80 KHz
Horizontal Viewing Angle
170
Vertical Viewing Angle
160
Backlight Technology
LED backlight
Controls & Adjustments
Mute, volume, brightness, contrast, H/V position, sharpness, colour temperature, phase, clock, aspect control
OSD Languages
Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Features
Anti-glare, IntelliTouch Pro
Colour
Black
Dimensions (WxDxH)
39.19 cm x 20.94 cm x 36.07 cm - with stand
Weight
5.21 kg
Audio
Type
Speakers - stereo
Output Power / Channel
2 Watt
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive
Connectivity
Interfaces
VGA ¦ DVI-D ¦ 2 x USB (Type A) ¦ USB (Type B)
Mechanical
Display Position Adjustments
Height, tilt
Tilt Angle
-5/+90
VESA Mounting Interface
75 x 75 mm
Miscellaneous
Features
Security lock slot (cable lock sold separately)
MTBF
50,000 hour(s)
Compliant Standards
Plug and Play, UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, CoC
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
22 Watt
Power Consumption (Typical)
22 Watt
Power Consumption Sleep
2 Watt
Dimensions & Weight
Dimensions & Weight Details
Without stand - width: 39.19 cm - depth: 4.95 cm - height: 32.72 cm - weight: 3.56 kg ¦ With stand - width: 39.19 cm - depth: 20.94 cm - height: 36.07 cm - weight: 5.21 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80% (non-condensing)
