Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
StarTech.com

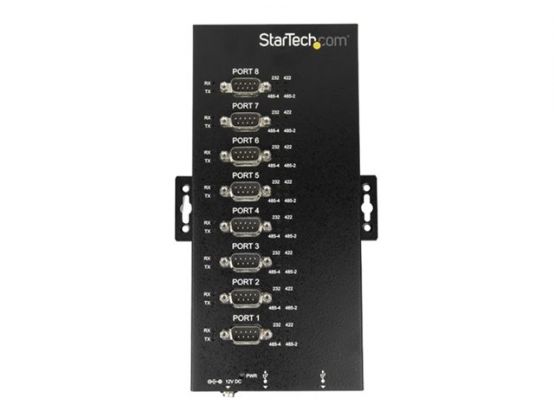

StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter, Industrial USB 2.0 to DB9 Serial Converter Hub, IP30 Rated, Din Rail Mountable Metal Serial Hub, 15kV ESD Protection - 6ft Locking Cable Incl - Serial adapter - USB 2.0 - RS-232/422/485 x 8
SKU
1TCPTIOC-002437
Manufacture#: ICUSB234858I
£367.39
£440.87 inc VAT
Order by 15:00 and receive your order on Thursday 24 Apr
Product details
- 6ft Locking Cable Incl
- Serial adapter
- USB 2.0
- RS-232/422/485 x 8
Payment options available at checkout
Overview
Specification
Product Description
StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter, Industrial USB 2.0 to DB9 Serial Converter Hub, IP30 Rated, Din Rail Mountable Metal Serial Hub, 15kV ESD Protection - 6ft Locking Cable Incl - serial adapter - USB 2.0 - RS-232/422/485 x 8 - TAA Compliant
Device Type
Serial adapter
Form Factor
DIN rail mountable
Interface (Bus) Type
USB 2.0
Ports
RS-232/422/485 x 8
Dimensions (WxDxH)
12.8 cm x 21.9 cm x 2.5 cm
Weight
750 g
Data Link Protocol
RS-232, RS-422, RS-485
Data Transfer Rate
921.6 Kbps
Processor
FTDI FT4232H
Colour
Black
System Requirements
Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.9 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux 2.4.x or later, Linux LTS versions only
TAA Compliant
Yes
Manufacturer Warranty
2-year warranty
Extended Specification
General
Device Type
Serial adapter
Form Factor
DIN rail mountable
Interface (Bus) Type
USB 2.0
Networking
Ports
RS-232/422/485 x 8
Connectivity Technology
Wired
Data Link Protocol
RS-232, RS-422, RS-485
Data Transfer Rate
921.6 Kbps
Status Indicators
Transmit, receive
Features
15 KV Electrostatic Discharge Protection
Processor / Memory
Processor
FTDI FT4232H
Expansion / Connectivity
Interfaces
8 x RS-232/422/485 - 9 pin D-Sub (DB-9) - male ¦ 1 x USB - 4 pin USB Type A - female ¦ 1 x USB - 4 pin USB Type B - female
Miscellaneous
Cables Included
1 x USB-A to USB-B cable (external)
Compliant Standards
FCC, RoHS, WEEE
Colour
Black
TAA Compliant
Yes
Power
Power Consumption Operational
36 Watt
Software / System Requirements
OS Required
Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.9 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux 2.4.x or later, Linux LTS versions only
Dimensions & Weight
Width
12.8 cm
Depth
21.9 cm
Height
2.5 cm
Weight
750 g
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
5 - 95%
