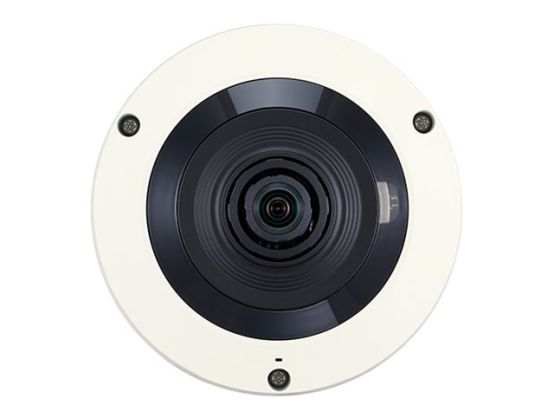

Name: Hanwha Techwin WiseNet X XNF-8010R - network surveillance camera - dome
Brand: Hanwha Techwin
SKU: 1TSECSPD-005812
Price: 508.55 GBP
Availability: InStock

Overview

Main features

Hanwha Techwin WiseNet X XNF-8010R
Network surveillance camera
dome
colour (Day&Night)
6 MP
2048 x 2048
fixed focal
audio
composite
LAN 10/100
MJPEG, H.264, H.265
DC 12 V / PoE Class 3

Overview

Hanwha Techwin WiseNet X XNF-8010R - network surveillance camera - dome

Indoor fisheye camera
True WDR
USB port for easy installation
Advanced video/audio and business analytics

Specification

Product Description Hanwha Techwin WiseNet X XNF-8010R - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome

Audio Yes: two-way audio capability, built-in microphone

Dimensions (WxDxH) 14.6 cm x 14.6 cm x 5.48 cm

Weight 730 g

Colour Ivory

Connectivity Technology Wired

Camera Colour - Day&Night - NTSC, PAL

Max Resolution 2048 x 2048

Frame Rate (max) 30 frames per second

Motion Detection Yes

Optical Sensor Type CMOS - 1/1.8" - 6 MP

Minimum Illumination 0.1 lux - colour - F1.6 ¦ 0 lux - B&W - infrared LEDs on

Focal Length Control Fixed focal

Focal Length 1.6 mm

Focus Adjustment Automatic, manual (min distance 30 cm)

Lens Iris F/1.6

Interfaces Composite video, Ethernet 10Base-T/100Base-TX

Voltage DC 12 V / PoE Class 3

Features Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), tamper-detection, digital PTZ function, fisheye lens, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, people counting, Pixel Counter Support, Heat Map, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering

Environmental Parameters (operating) -10 °C - 55 °C; 0 - 90% relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: two-way audio capability, built-in microphone

Form Factor Dome

Connectivity Technology Wired

Width 14.6 cm

Depth 14.6 cm

Height 5.48 cm

Weight 730 g

Camera

Type Colour - Day&Night - fixed

Video Format NTSC, PAL

Digital Video Format MJPEG, H.264, H.265

Max Digital Video Resolution 2048 x 2048

Motion Detection Yes

Digital Zoom 8

Exposure Range 2 sec - 1/12000 sec

Minimum Illumination 0.1 lux - colour - F1.6 ¦ 0 lux - B&W - infrared LEDs on

Infrared LEDs Yes

Infrared Distance 15 m

Video Capture 2048 x 2048 @ 30 fps

Features Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), tamper-detection, digital PTZ function, fisheye lens, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, people counting, Pixel Counter Support, Heat Map, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering

Image Sensor

Type 6 MP CMOS 1/1.8"

Total Pixels 3096 x 2094

Effective Pixels 2048 x 2048

Lens Construction

Type Fixed focal

Focal Length 1.6 mm

Lens Iris F/1.6

Focus Adjustment Automatic, manual

Min Focus Distance 30 cm

Horizontal Field of View (degree) 192 - 192

Interfaces

Video Composite video

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM, SIP

Alarm Inputs Qty 1

Alarm Outputs Qty 1

Expansion / Connectivity

Ports Composite video ¦ Audio line-in/microphone ¦ Audio line out - 3.5 mm mono jack ¦ USB ¦ LAN/power - RJ-45

Supported Memory Cards SD Memory Card, SDXC Memory Card, SDHC Memory Card

Miscellaneous

Compliant Standards IEEE 802.3af

Colour Ivory

Power

Power Requirements DC 12 V / PoE Class 3

Power Device 12 Watt

Software / System Requirements

OS Required Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12

Environmental Parameters

Min Operating Temperature -10 °C

Max Operating Temperature 55 °C

Relative Humidity (operating) 0 - 90%
