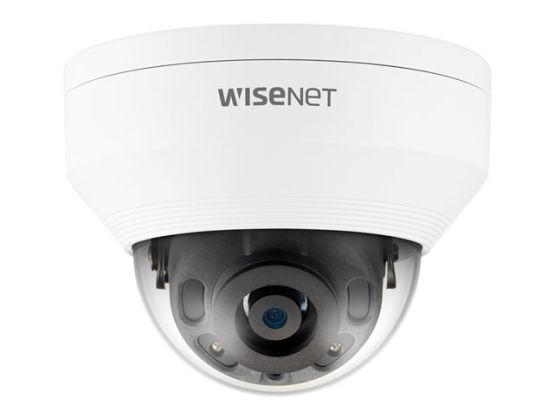

Name: Hanwha Techwin WiseNet Q QNV-7022R - network surveillance camera - dome
Brand: Hanwha Techwin
SKU: 1TSECSPD-005586
Price: 200.09 GBP
Availability: InStock

Overview

Main features

Hanwha Techwin WiseNet Q QNV-7022R
Network surveillance camera
dome
outdoor, indoor
dustproof / waterproof / vandal-proof
colour (Day&Night)
4 MP
2560 x 1440
board mount
auto iris
fixed focal
audio
composite
LAN 10/100
MJPEG, H.264, H.265
DC 12 V / PoE Class 3

Overview

Hanwha Techwin WiseNet Q QNV-7022R - network surveillance camera - dome

4MP resolution
Built-in 3.6 mm fixed lens
30 fps @ 4MP
H.265, H.264, MJPEG codec supported, multiple streaming
Day and Night (ICR), WDR (120 dB)
Defocus detection, directional detection, motion detection, enter/exit, tampering
microSD memory slot, PoE/12 V DC
IR viewable length 25 m, IP66, IK10
Hallway view support, WiseStream II
LDC support (lens distortion correction)

Specification

Product Description Hanwha Techwin WiseNet Q QNV-7022R - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome - outdoor, indoor - dustproof / waterproof / vandal-proof

Audio Yes

Dimensions (WxDxH) 12.03 cm x 12.03 cm x 9.17 cm

Weight 510 g

Colour White, RAL 9003

Connectivity Technology Wired

Camera Colour - Day&Night

Max Resolution 2560 x 1440

Frame Rate (max) 15 frames per second

Motion Detection Yes

Optical Sensor Type CMOS - 1/3" - 4 MP

Minimum Illumination 0.15 lux - colour - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on

Focal Length Control Fixed focal

Focal Length 4 mm

Lens Mounting Board mount

Lens Iris F/1.6 - auto iris (DC)

Panning Range (degree) 0 to 350

Tilting Range (degree) 0 to 67

Interfaces Composite video, Ethernet 10Base-T/100Base-TX

Voltage DC 12 V / PoE Class 3

Features Backlight Compensation (BLC), progressive scanning, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Intelligent Video Analysis (IVA), tamper-detection, Lens Distortion Correction, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream Smart Codec

Environmental Parameters (operating) -30 °C - 55 °C; 0 - 90% relative humidity

General

Device Type Network surveillance camera

Audio Support Yes

Form Factor Dome

Connectivity Technology Wired

Width 12.03 cm

Depth 12.03 cm

Height 9.17 cm

Weight 510 g

Camera

Type Colour - Day&Night - fixed - outdoor, indoor - dustproof / waterproof / vandal-proof

Digital Video Format MJPEG, H.264, H.265

Max Digital Video Resolution 2560 x 1440

Motion Detection Yes

Minimum Illumination 0.15 lux - colour - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on

Infrared LEDs Yes

Infrared Distance 25 m

Digital Video Capture Resolution 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 2304 x 1296, 2560 x 1440, 800 x 448

Frame Rate (max) 15 frames per second

Features Backlight Compensation (BLC), progressive scanning, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Intelligent Video Analysis (IVA), tamper-detection, Lens Distortion Correction, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream Smart Codec

Image Sensor

Type 4 MP CMOS 1/3"

Lens Construction

Type Board mount - fixed focal

Focal Length 4 mm

Lens Iris F/1.6 auto iris (DC)

Horizontal Field of View (degree) 78.2

Vertical Field of View (degree) 41.2

Diagonal Field of View (degree) 92

Panning

Range (degree) 0 to 350

Tilting

Range (degree) 0 to 67

Interfaces

Video Composite video

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, PIM-SM

Alarm Inputs Qty 1

Alarm Outputs Qty 1

Expansion / Connectivity

Ports Composite video ¦ Audio line-in/microphone ¦ LAN/power - RJ-45

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Compliant Standards IK10, IP66, IEEE 802.3af, IEEE 802.1x, EN 62676-4

Colour White, RAL 9003

Power

Power Requirements DC 12 V / PoE Class 3

Power Device 8.1 Watt

Environmental Parameters
