Name: 4MP IR DOME
Brand: Hanwha Techwin
SKU: 1TSECSPD-005572
Price: 177.85 GBP
Availability: OutOfStock

Overview

Main features

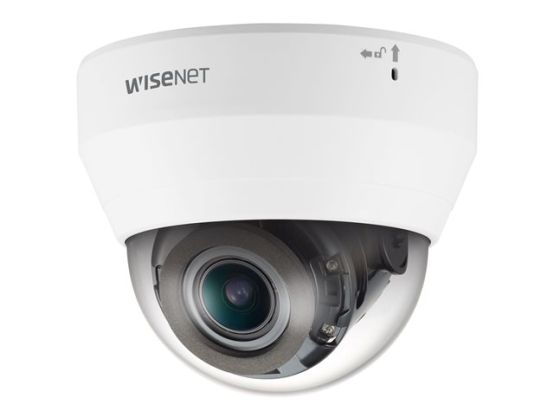

Hanwha Techwin WiseNet Q QND-7012R
Network surveillance camera
dome
colour (Day&Night)
4 MP
2560 x 1440
fixed focal
audio
composite
LAN 10/100
MJPEG, H.264, H.265
DC 12 V / PoE Class 3

Overview

Hanwha Techwin WiseNet Q QND-7012R - network surveillance camera - dome

Specification

Product Description Hanwha Techwin WiseNet Q QND-7012R - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome

Audio Yes: built-in microphone

Dimensions (WxDxH) 11 cm x 11 cm x 8.6 cm

Weight 255 g

Colour White, RAL 9003

Connectivity Technology Wired

Camera Colour - Day&Night

Max Resolution 2560 x 1440

Frame Rate (max) 30 frames per second

Motion Detection Yes

Optical Sensor Type CMOS - 1/3" - 4 MP

Minimum Illumination 0.15 lux - colour - F2.0 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on

Focal Length Control Fixed focal

Focal Length 2.8 mm

Lens Iris F/2.0

Panning Range (degree) 0 to 350

Tilting Range (degree) 0 to 67

Interfaces Composite video, Ethernet 10Base-T/100Base-TX

Voltage DC 12 V / PoE Class 3

Features Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream Smart Codec, WiseStream II support, Unicast Streaming, ONVIF (Profile T) support, direction detection, Virtual Line detection

Environmental Parameters (operating) -10 °C - 55 °C; 0 - 95% RH relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: built-in microphone

Audio Formats G.726, ADPCM, G.711

Form Factor Dome

Connectivity Technology Wired

Width 11 cm

Depth 11 cm

Height 8.6 cm

Weight 255 g

Camera

Type Colour - Day&Night - fixed

Digital Video Format MJPEG, H.264, H.265

Max Digital Video Resolution 2560 x 1440

Motion Detection Yes

Exposure Range 1/5 sec - 1/12000 sec

Minimum Illumination 0.15 lux - colour - F2.0 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on

Infrared LEDs Yes

Infrared Distance 20 m

Video Capture 2560 x 1440 @ 30 fps

RAM 512 MB

Flash Memory 256 MB

Features Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream Smart Codec, WiseStream II support, Unicast Streaming, ONVIF (Profile T) support, direction detection, Virtual Line detection

Image Sensor

Type 4 MP CMOS 1/3"

Lens Construction

Type Fixed focal

Focal Length 2.8 mm

Lens Iris F/2.0

Horizontal Field of View (degree) 107.5

Vertical Field of View (degree) 59.7

Diagonal Field of View (degree) 122

Panning

Range (degree) 0 to 350

Tilting

Range (degree) 0 to 67

Interfaces

Video Composite video

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, PIM-SM, LLDP

Alarm Inputs Qty 1

Alarm Outputs Qty 1

Expansion / Connectivity

Ports Composite video ¦ LAN/power - RJ-45

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Compliant Standards IEEE 802.1af

Colour White, RAL 9003

Power

Power Requirements DC 12 V / PoE Class 3

Power Device 7.9 Watt

Environmental Parameters
