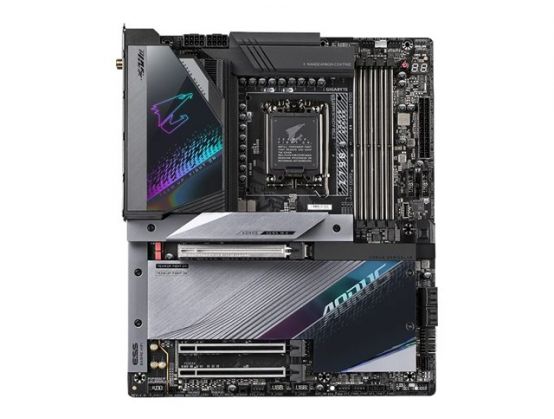

Gigabyte Z790 AORUS MASTER - 1.0 - motherboard - extended ATX - LGA1700 Socket - Z790
GIGABYTE
MB INT Z790 Aorus Master DDR5 E-ATX
SKU
1TCPTMOT-004487
Manufacture#: Z790 AORUS MASTER
£330.58
£396.70 inc VAT
Order by 15:00 and receive your order on Monday 28 Apr
Product details
- 1.0
- motherboard
- extended ATX
- LGA1700 Socket
Payment options available at checkout
Overview
Specification
Product Description
Gigabyte Z790 AORUS MASTER - 1.0 - motherboard - extended ATX - LGA1700 Socket - Z790
Product Type
Motherboard - extended ATX
Chipset Type
Intel Z790
Processor Socket
1 x LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR5, non-ECC, ECC (operate in non-ECC mode), unbuffered
Storage Ports
4 x SATA-600 (RAID), 5 x M.2
USB / FireWire Ports
2 x USB-C Gen 2x2 + 1 x USB-C 3.2 Gen 1 + 7 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (5.1-channel)
LAN
10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
Extended Specification
General
Product Type
Motherboard - extended ATX
Chipset Type
Intel Z790
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR5
Bus Clock
4000 MHz, 4800 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio
Type
HD Audio (5.1-channel)
Audio Codec
Realtek ALC1220-VB
Compliant Standards
High Definition Audio, DTS:X Ultra
LAN
Network Interfaces
10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x16
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Interfaces
1 x LAN (10Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 7 x USB 3.2 Gen 2 ¦ 2 x USB-C Gen2x2 ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C 3.2 Gen 1
Internal Interfaces
4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 1 x audio - header ¦ 2 x Thunderbolt - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring
System voltage, fan fail warning, water cooling flow rate, fan control, noise detection
Hardware Features
Q-Flash Plus, Q-Flash, ESS 9118 SABRE HiFi DAC, 2x Copper PCB, 20+1+2 Phase Power Design, 105A Power Stage, 8 Layer PCB, Fins-Array III with NanoCarbon Coating, NanoCarbon Baseplate, Solid Pin Power Connectors, DIY Friendly Design, GIGABYTE Smart Fan 6, RGB FUSION 2.0
Miscellaneous
Software Included
Norton Internet Security
Compliant Standards
DisplayPort 1.2, HDCP 2.3
Width
30.5 cm
Depth
26 cm
