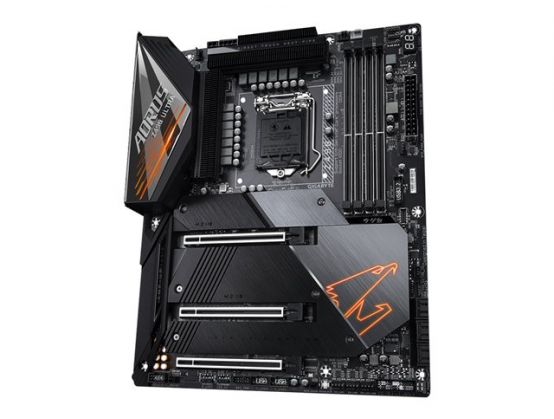

To fully support the latest 10th Gen ten-core CPU, the Z490 AORUS ULTRA is equipped with the ultimate power solution with the desired features: direct, digital and multiple phases. After countless experiments and tests, GIGABYTE presents the unbeatable Z490 AORUS ULTRA for enthusiasts and gamers.
USB / FireWire Ports1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Max Allocated RAM Size512 MB
AudioHD Audio (8-channel)
LAN2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax
Network Interfaces2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if neighbour x16 slot is occupied)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x8 mode)
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 2 x M.2 ¦ PCIe -connectors: 1 x M.2
Interfaces1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 2.0
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x Thunderbolt - header ¦ 1 x audio - header ¦ 1 x USB-C Gen2 - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate, fan fail warning
Hardware Features12 Phase Power Design, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, GIGABYTE AMP-UP Audio, Q-Flash Plus, Game Boost, Ultra Durable Memory Armor, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0, M.2 Thermal Guard II, NanoCarbon Fins-Array II Heatsink and Direct Touch Heatpipe II
Miscellaneous
Software IncludedNorton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, cFosSpeed, GIGABYTE Fast Boot, GIGABYTE Smart Backup, XSplit Gamecaster (1 year licence), XSplit Broadcaster (1 year licence)
