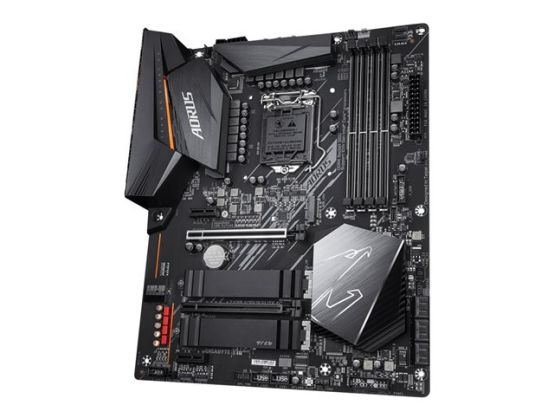

Motherboard Intel 1200 Z490 Aorus Elite AC D4 ATX

Name: Motherboard Intel 1200 Z490 Aorus Elite AC D4 ATX
Brand: GIGABYTE
SKU: 1TCPTMOT-004276
Price: 182.69 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004276

Manufacture#: Z490 AORUS ELITE AC

Be the first to review this product

£152.24

£182.69 inc VAT

Order by 15:00 and receive your order on Monday 3 Mar

Product details

1.0
motherboard
ATX
LGA1200 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte Z490 AORUS ELITE AC
1.0
motherboard
ATX
LGA1200 Socket
Z490 Chipset
USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2
Wi-Fi, 2.5 Gigabit LAN, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

Z490 AORUS ELITE AC motherboard uses a 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the Intel 10-core CPU. Z490 AORUS ELITE AC uses high-performance thermal design with screwed mounted heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. With high-quality components and GIGABYTE R&D design capability, the Z490 AORUS is a true beast among motherboards. Equipped with next-generation connectivity AORUS gaming motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 drive or charging your new mobile device.

Specification

Product Description Gigabyte Z490 AORUS ELITE AC - 1.0 - motherboard - ATX - LGA1200 Socket - Z490

Product Type Motherboard - ATX

Chipset Type Intel Z490

Processor Socket 1 x LGA1200 Socket

Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 10th Generation Intel Core / Pentium / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Max Allocated RAM Size 512 MB

Audio HD Audio (8-channel)

LAN 802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.0

General

Product Type Motherboard - ATX

Chipset Type Intel Z490

Processor Socket LGA1200 Socket

Max Processors Qty 1

Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 10th Generation Intel Core / Pentium / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.)

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode

Graphics

Max Allocated RAM Size 512 MB

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC1200

Compliant Standards High Definition Audio

LAN

Network Interfaces 802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.0

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 2 x M.2

Interfaces 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x Thunderbolt - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header

Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate, fan fail warning

Hardware Features 12 Phase Power Design, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, GIGABYTE AMP-UP Audio, 2x Copper PCB, Q-Flash Plus, Game Boost, Audio Noise Guard, Ultra Durable Memory Armor, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0, Advanced Thermal Design with Enlarge Heatsink

Miscellaneous

Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control

Width 30.5 cm

Depth 24.4 cm
