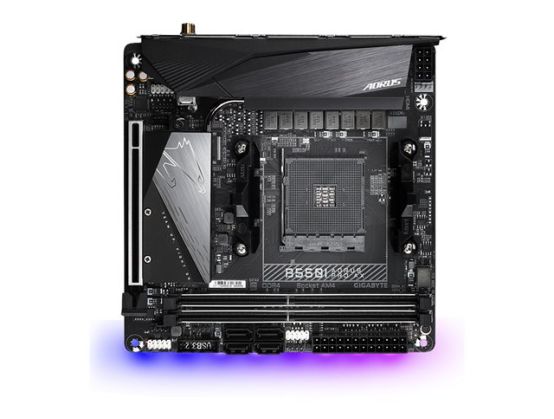

B550I AORUS PRO AX is a Mini-ITX motherboard perfect for building a small form factor PC for people who demand higher performance but also care about aesthetics. The compact yet powerful PC delivers amazing performance with the advanced CPU, graphic card and blazing fast connectivity. It is also equipped with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.
Network Interfaces2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU))
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Interfaces1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x DisplayPort
Internal Interfaces2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Hardware FeaturesQ-Flash, 8 Phase Power Design, On/Off Charge, GIGABYTE AMP-UP Audio, 8 Layer PCB, Q-Flash Plus, Nichicon Fine Gold Series Audio Capacitors, Ultra Durable Memory Armor, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0, 90A Smart Power Stage
Miscellaneous
Software IncludedNorton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, XSplit Gamecaster (1 year licence), XSplit Broadcaster (1 year licence), Realtek Gaming LAN Bandwidth Control
