The Elo Touch Solutions 1523L 15-inch touch-monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.¦The 1523L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, connectivity incorporated within the monitor, and communication cables and side controls with lockout capability.
ELO

1523L 15-INCH LCD WW VGA BLK ZERO BEZEL ANTI-GLARE BLACK IN
SKU
1TDSPMON-028003
Manufacture#: E738607
£474.14
£568.97 inc VAT
Order by 15:00 and receive your order on Tuesday 22 Apr
Product details
- LED monitor
- 15"
- touchscreen
- 1024 x 768 @ 75 Hz

Payment options available at checkout
Overview
Specification
Product Description

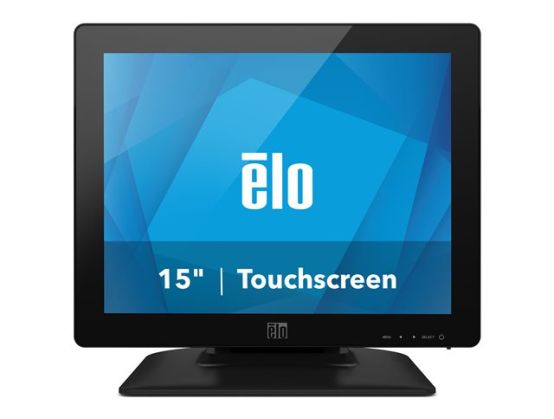

Elo 1523L - LED monitor - 15"
Device Type
LED-backlit LCD monitor - 15" - touchscreen
Features
Touch-screen, USB Hub
Aspect Ratio
4:3
Native Resolution
1024 x 768 at 75 Hz
Brightness
250 cd/m²
Contrast Ratio
700:1
Response Time
25 ms
Colour Support
16.2 million colours
Input Connectors
DVI-D, VGA
Display Position Adjustments
Tilt
Voltage
AC 120/230 V (50/60 Hz)
Colour
Black
Dimensions (WxDxH) - with stand
35.8 cm x 31.8 cm x 19.9 cm
Weight
4.44 kg
Compliant Standards
UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, CoC
Manufacturer Warranty
3-year warranty
Extended Specification
General
Display Type
LED-backlit LCD monitor / TFT active matrix
Diagonal Size
15"
Built-in Devices
USB Hub
Aspect Ratio
4:3
Native Resolution
1024 x 768 at 75 Hz
Brightness
250 cd/m²
Brightness w/touchscreen
215 cd/m²
Contrast Ratio
700:1
Colour Support
16.2 million colours
Response Time
25 ms
Vertical Refresh Rate
56 - 75 Hz
Horizontal Refresh Rate
31 - 80 KHz
Horizontal Viewing Angle
160
Vertical Viewing Angle
140
Backlight Technology
LED backlight
Controls & Adjustments
Mute, volume, brightness, contrast, H/V position, sharpness, colour temperature, phase, clock, aspect control
OSD Languages
Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Features
Anti-glare, Projected Capacitive Touch (P-CAP) technology
Colour
Black
Dimensions (WxDxH)
35.8 cm x 31.8 cm x 19.9 cm - with stand
Weight
4.44 kg
Audio
Type
Speakers - stereo
Output Power / Channel
2 Watt
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive
Connectivity
Interfaces
VGA ¦ DVI-D ¦ 2 x USB
Mechanical
Display Position Adjustments
Tilt
VESA Mounting Interface
75 x 75 mm
Miscellaneous
Features
Security lock slot (cable lock sold separately)
MTBF
50,000 hour(s)
Compliant Standards
UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, CoC
Security Slot Type
Kensington security slot
Power
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption (Typical)
12 Watt
Dimensions & Weight
Dimensions & Weight Details
Without stand - weight: 2.65 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80% (non-condensing)
