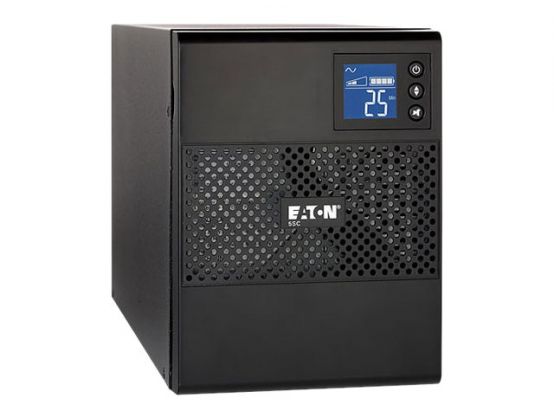

Eaton 5SC 750 - UPS - AC 120 V - 525 Watt - 750 VA - RS-232, USB - output connectors: 6 - black
Order by 15:00 and receive your order on Thursday 13 Mar
Product details
UPS
AC 120 V
525 Watt
750 VA
Payment options available at checkout
Main features
Eaton 5SC 750
UPS
AC 120 V
525 Watt
750 VA
RS-232, USB
output connectors: 6
black
Overview
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
Product Description
Eaton 5SC 750 - UPS - 525 Watt - 750 VA
Device Type
UPS - external
Weight
25.6 kg
Input Voltage
AC 120 V
Output Voltage
AC 120 V
Power Capacity
525 Watt / 750 VA
Input Connectors
1 x power NEMA 5-15
Output connectors
6 x power NEMA 5-15 (UPS and surge)
Battery
Lead Acid
Run Time (Up To)
5 min at full load
Networking
RS-232, USB
Colour
Black
System Requirements
Apple MacOS, Linux, Microsoft Windows
Dimensions (WxDxH)
15 cm x 34 cm x 20.9 cm
Manufacturer Warranty
3-year warranty
General
Device Type
UPS - external
Colour
Black
Power Device
UPS Technology
Line interactive
Input Voltage
AC 120 V
Input Voltage Range
AC 96 - 144 V
Frequency Required
50/60 Hz
Input Connectors
1 x power NEMA 5-15
Power Output Connectors Details
6 x power NEMA 5-15 (UPS and surge)
Output Voltage
AC 120 V
Power Capacity
525 Watt / 750 VA
Output Waveform
Sinewave
Efficiency
94%
Battery
Technology
Lead Acid
Run Time (Up To)
5 min at full load ¦ 13 min at half load
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9)
Miscellaneous
Cables Included
Serial cable - external - 1.83 m ¦ USB cable - external - 1.83 m ¦ Power cable - integrated - 1.83 m
Features
Advance Battery Management (ABM), audible alarm, LCD display, cold-start function
Compliant Standards
CISPR 22 Class A, NOM, IEC 62040-2, RoHS, FCC Part 15 A, cULus
Software / System Requirements
Software Included
Intelligent Power Manager
OS Required
Apple MacOS, Linux, Microsoft Windows
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
0 - 90% (non-condensing)
Sound Emission
55 dB
Dimensions & Weight
Width
15 cm
Depth
34 cm
Height
20.9 cm
Weight
25.6 kg
