Name: Cisco MDS 9148S - Switch - Managed - 12 x 16Gb Fibre Channel - rack-mountable - with 12x 16 Gbps SW LC SFP+ transceiver
Brand: CISCO
SKU: 1TNETNHS-034309
Price: 3747.85 GBP
Availability: OutOfStock

Overview

Main features

Cisco MDS 9148S
Switch
Managed
12 x 16Gb Fibre Channel
back to front airflow
rack-mountable
with 12x 16 Gbps SW LC SFP+ transceiver

Overview

The Cisco MDS 9148S 16G Multilayer Fabric Switch is the next generation of the highly reliable Cisco MDS 9100 series switches. It includes up to 48 auto-sensing line-rate 16-Gbps Fiber Channel ports in a compact easy to deploy and manage 1-rack-unit (1RU) form factor. In all, the Cisco MDS 9148S is a powerful and flexible switch that delivers high performance and comprehensive Enterprise-class features.

Specification

Product Description Cisco MDS 9148S - switch - 48 ports - Managed - rack-mountable - with 12x 16 Gbps SW LC SFP+ transceiver

Device Type Switch - 48 ports - Managed - with 12x 16 Gbps SW LC SFP+ transceiver

Enclosure Type Back to front airflow rack-mountable 1U

Subtype Fibre Channel

Ports 12 x 16Gb Fibre Channel

Remote Management Protocol RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI

Features Auto-sensing per device, ISL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), role based access control, Registered State Change Notification (RSCN) support, SFTP client

Power AC 120/230 V (50/60 Hz)

Power Redundancy Yes

Dimensions (WxDxH) 43.59 cm x 41.5 cm x 4.37 cm

Weight 9 kg

Manufacturer Warranty 1-year warranty

General

Device Type Switch - 48 ports - Managed - with 12x 16 Gbps SW LC SFP+ transceiver

Enclosure Type Back to front airflow rack-mountable 1U

Subtype Fibre Channel

Ports 12 x 16Gb Fibre Channel

Fibre Channel FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6

Remote Management Protocol RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI

Encryption Algorithm AES

Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory

Features Auto-sensing per device, ISL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), role based access control, Registered State Change Notification (RSCN) support, SFTP client

Expansion / Connectivity

Interfaces 1 x 1000Base-T RJ-45 management ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x USB Type A ¦ 12 x 16Gb Fibre Channel ¦ 36 x 16Gb Fibre Channel SFP+ Ports on Demand

Power

Power Device Internal power supply - hot-plug

Installed Qty 2

Max Supported Qty 2

Power Redundancy Yes

Power Redundancy Scheme 1+1

Power Provided 300 Watt

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Compliant Standards CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 3260, EMC, ICES-003 Class A, FIPS 140-2, FCC CFR21 Part 1040, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950

Software / System Requirements

Software Included Cisco Data Center Network Manager (DCNM) for SAN Advanced Edition, Cisco MDS 9000 Family Enterprise Package

Dimensions & Weight

Width 43.59 cm

Depth 41.5 cm

Height 4.37 cm

Weight 9 kg

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - 1 year - response time: 10 days

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 10 - 95% (non-condensing)

Reviews

Read reviews

There are currently no reviews for this product

Be the first to add a review

Add a review

Accessories

CISCO

CISCO Cisco - Power cable - IEC 60320 C15 to BS 1363A (M) - AC 250 V - 2.5 m - United Kingdom - for MDS 9020, 9216, Nexus 93108, 93180, 9336, 9372, UCS SmartPlay Select C3260

3 in stock

CISCO

Cisco - Power cable - IEC 60320 C15 to BS 1363A (M) - AC 250 V - 2.5 m - United Kingdom - for MDS 9020, 9216, Nexus 93108, 93180, 9336, 9372, UCS SmartPlay Select C3260

£18.65

£22.38 inc VAT

CISCO Connectors/Cabinet Power Cord 250 VAC

10+ in stock

CISCO

Connectors/Cabinet Power Cord 250 VAC

£18.59

£22.31 inc VAT

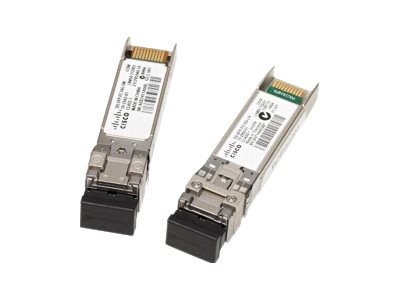

CISCO Cisco - SFP+ transceiver module - 16Gb Fibre Channel (SW) - fibre optic - LC multi-mode - up to 400 m - 850 nm - for P/N: DS-X9448-768K9=
