The Cisco Catalyst 1000-8P-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
CISCO

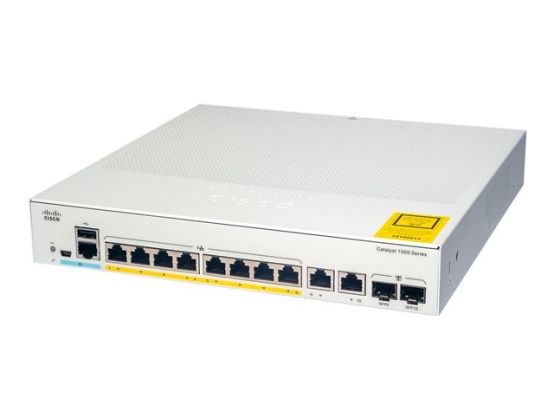

Cisco Catalyst 1000-8P-2G-L - Switch - Managed - 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 + 2 x combo Gigabit SFP (uplink) - rack-mountable - PoE+ (67 W)
SKU
1TNETNHS-029526
Manufacture#: C1000-8P-2G-L
£259.63
£311.56 inc VAT
Order by 15:00 and receive your order on Monday 3 Mar
Product details
- Switch
- Managed
- 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 + 2 x combo Gigabit SFP (uplink)
- rack-mountable

Payment options available at checkout
Overview
Specification
Product Description
Cisco Catalyst 1000-8P-2G-L - switch - 8 ports - Managed - rack-mountable
Device Type
Switch - 8 ports - Managed
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 + 2 x combo Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
67 W
Performance
Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64-byte L3 packets): 14.88 Mpps
Capacity
Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Features
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Power
AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH)
26.8 cm x 32.3 cm x 4.39 cm
Manufacturer Warranty
Limited lifetime warranty
Extended Specification
General
Device Type
Switch - 8 ports - Managed
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 + 2 x combo Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
67 W
Performance
Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64-byte L3 packets): 14.88 Mpps
Capacity
Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status
Expansion / Connectivity
Interfaces
4 x 1000Base-T RJ-45 PoE+ - 15 W ¦ 4 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A
Power
Power Device
Internal power supply
Installed Qty
1
Voltage Required
AC 120/230 V (50 - 60 Hz)
Miscellaneous
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Dimensions & Weight
Width
26.8 cm
Depth
32.3 cm
Height
4.39 cm
Manufacturer Warranty
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90%
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95%
