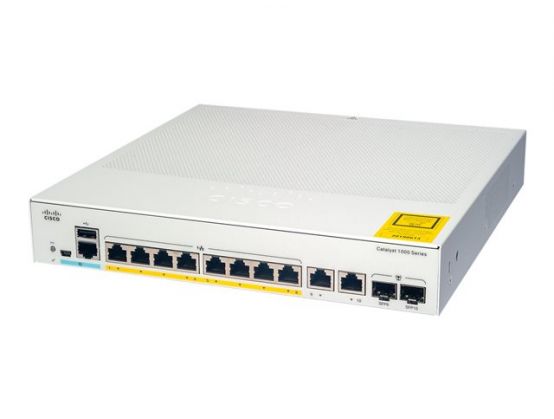

Name: Cisco Catalyst 1000-8FP-2G-L - Switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink) - rack-mountable - PoE+ (120 W)
Brand: CISCO
SKU: 1TNETNHS-029524
Price: 501.19 GBP
Availability: OutOfStock

Overview

Main features

Cisco Catalyst 1000-8FP-2G-L
Switch
Managed
8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink)
rack-mountable
PoE+ (120 W)

Overview

The Cisco Catalyst 1000-8FP-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.

Specification

Product Description Cisco Catalyst 1000-8FP-2G-L - switch - 8 ports - Managed - rack-mountable

Device Type Switch - 8 ports - Managed

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink)

Power Over Ethernet (PoE) PoE+

PoE Budget 120 W

Performance Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64-byte L3 packets): 14.88 Mpps

Capacity Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte

Jumbo Frame Support 10240 bytes

Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS

Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX

Power AC 120/230 V (50 - 60 Hz)

Dimensions (WxDxH) 26.8 cm x 32.3 cm x 4.39 cm

Weight 2.7 kg

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 8 ports - Managed

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (uplink)

Power Over Ethernet (PoE) PoE+

PoE Budget 120 W

Performance Forwarding bandwidth: 10 Gbps ¦ Switching bandwidth: 20 Gbps ¦ Forwarding rate (64-byte L3 packets): 14.88 Mpps

Capacity Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte

Jumbo Frame Support 10240 bytes

Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS

Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX

Processor X ARM: 800 MHz

RAM 512 MB

Flash Memory 256 MB

Status Indicators Status

Expansion / Connectivity

Interfaces 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A

Power

Power Device Internal power supply

Installed Qty 1

Voltage Required AC 120/230 V (50 - 60 Hz)

Miscellaneous

Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A

Dimensions & Weight

Width 26.8 cm

Depth 32.3 cm

Height 4.39 cm

Weight 2.7 kg

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 50 °C

Humidity Range Operating 5 - 90%

Min Storage Temperature -25 °C

Max Storage Temperature 70 °C

Humidity Range Storage 5 - 95%
