The powerful fan delivers impressive airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.
Higher cooling performance
Pushing the longevity of components to a maximum
Great convenience and compatibility
Higher cooling performanceThe fan inlet of the Straight Power 11 750W is funnel shaped. It causes an increased throughput of air which benefits to a higher cooling performance.Pushing the longevity of components to a maximumAn absolute innovation: the Straight Power 11 750W is wire free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.Great convenience and compatibilityThanks to the fully modular cable management, cables that serve no purpose in the system are left out. For this reason systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.

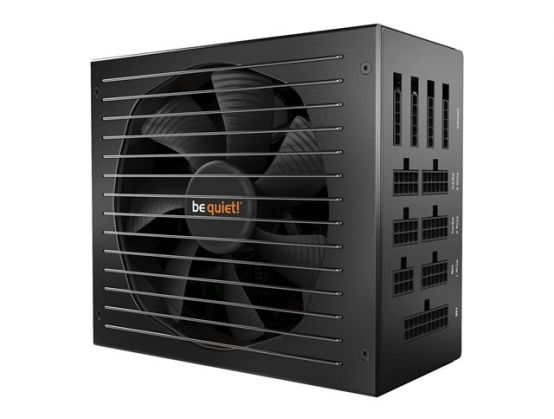

Product Descriptionbe quiet! Straight Power 11 750W - power supply - 750 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.4/ EPS12V 2.92
80 PLUS Certification80 PLUS Gold
Weight3.04 kg
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity750 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 20 A ¦ +12V2 - 20 A ¦ +12V3 - 24 A ¦ +12V4 - 24 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 11 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Cooling System135 mm fan
Included AccessoriesScrews, cable ties
ColourBlack
Dimensions (WxDxH)15 cm x 17 cm x 8.6 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.4/ EPS12V 2.92
PSU Form FactorATX
ColourBlack
Power Device
Input VoltageAC 100-240 V
Frequency Required50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 11 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Output Voltage+3.3, +5, ±12 V
Power Capacity750 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 20 A ¦ +12V2 - 20 A ¦ +12V3 - 24 A ¦ +12V4 - 24 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency93%
80 PLUS Certification80 PLUS Gold
Miscellaneous
Included AccessoriesScrews, cable ties
Cables IncludedPower cable - external - 1.5 m
MTBF100,000 hours
Cooling System135 mm fan
FeaturesOver current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, 4 x 12V rail, thermal protection, DC-DC technology, fluid dynamic bearing cooling fan, Synchronous Rectifier (SR) technology
