be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
600 Watts of continuous power and powerful 12V-rail design offer high stability and performance
Full cable management offers maximum build flexibility and convenient usage

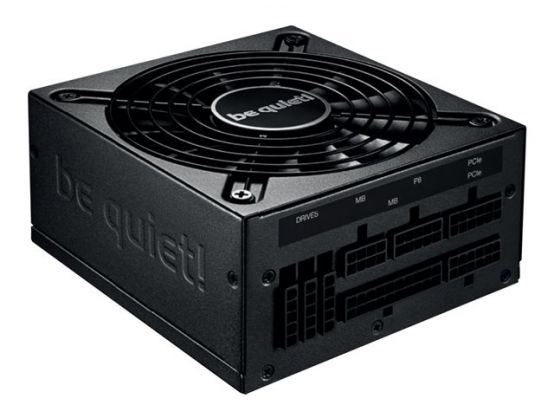

Product Descriptionbe quiet! SFX-L Power 600W - power supply - 600 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.4/ SFX12V 3.3
80 PLUS Certification80 PLUS Gold
LocalisationEurope
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity600 Watt
Output Current+3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 50 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power
Modular Cable ManagementYes
Cooling System120 mm fan
Included AccessoriesSFX to ATX bracket
ColourBlack
Dimensions (WxDxH)12.5 cm x 13 cm x 6.4 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty3-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.4/ SFX12V 3.3
PSU Form FactorSFX
ColourBlack
LocalisationEurope
Power Device
Input VoltageAC 100-240 V
Frequency Required50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power
Output Voltage+3.3, +5, ±12 V
Power Capacity600 Watt
Output Current+3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 50 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency92%
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Included AccessoriesSFX to ATX bracket
MTBF100,000 hours
Cooling System120 mm fan
FeaturesFully modular, Multi-GPU Technologies Supported, DC-DC technology, Synchronous Rectifier (SR) technology, single 12V rail, over current protection, over voltage protection, undervoltage protection, short-circuit protection, overheat protection, overpower protection
