Whether you're assembling a very quiet system, upgrading an existing PC, or building a multi-GPU gaming system, your build will benefit from this PSU series that simply has the best combination of features at a very popular prize.
Two 12V-rails and up to four PCI-express connectors for powerful multi-GPU systems
80PLUS Gold certification and up to 92% power conversion efficiency
Exceptionally quiet operation thanks to use of a silence-optimized 120mm be quiet! fan
Stable operation thanks to DC-to-DC power conversion technology
Modular cable management simplifies component installation and reduces annoying clutter
Fixed cables with high-quality single layer sleeve
Easy-to-use flat drives and PCIe cables offer more space for installation
Top component protection with full suite of safety features

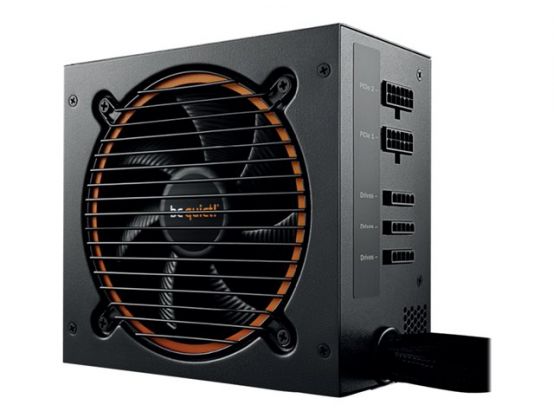

Product Descriptionbe quiet! Pure Power 11 CM - power supply - 500 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.4
80 PLUS Certification80 PLUS Gold
LocalisationEurope
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity500 Watt
Output Current+3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 28 A ¦ +12V2 - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Modular Cable ManagementYes
Cooling System120 mm fan
Dimensions (WxDxH)15 cm x 16 cm x 8.6 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.4
PSU Form FactorATX
LocalisationEurope
Power Device
Input VoltageAC 100-240 V
Frequency Required50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Output Voltage+3.3, +5, ±12 V
Power Capacity500 Watt
Output Current+3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 28 A ¦ +12V2 - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency92%
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Cooling System120 mm fan
FeaturesDual 12V rails, overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, Multi-GPU Technologies Supported, semi-modular
