General
Product Type

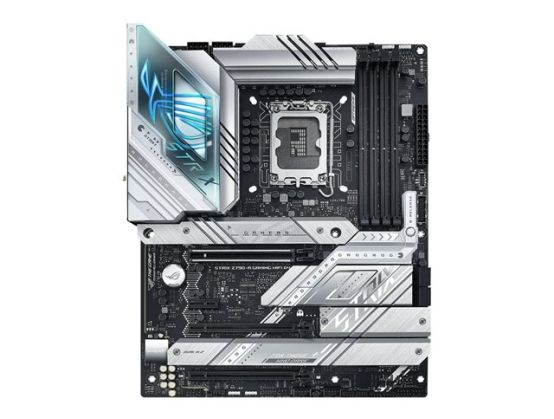

Motherboard - ATX
Chipset Type
Intel Z790
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x SPDIF out ¦ 2 x aerial
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
LANGuard, audio jack detect technology, jack retasking, ASUS OptiMem III, SupremeFX Shielding technology, Savitech SV3H712 amplifier, Clear CMOS Button, BIOS FlashBack button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, Q-LED, Q-Slot, Q-DIMM, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, CPU Socket lever protector, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, FlexKey button, Preboot eXecution Environment (PXE), M.2 heatsink, 16+1 Phase Power Design, DIY Friendly Design, PCIe Slot Q-Release, 70A Power Stage
Miscellaneous
Included Accessories
Thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 backplate Q-Latch, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card, 2 x M.2 rubber package, M.2 backplate rubber package
Cables Included
2 x Serial ATA cable
Software Included
ROG GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Sonic Radar III, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR
Compliant Standards
FCC Part 15 Class B, VCCI Class B ITE, JATE, EU RoHS, EU REACH, WEEE, DisplayPort 1.4
Width
30.5 cm
Depth
24.4 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
