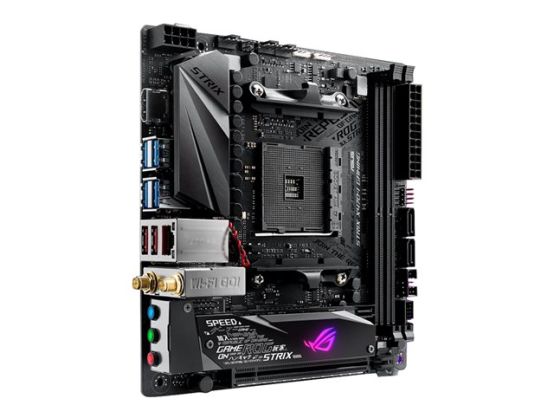

Elevating SSD cooling and premium sound lets the ROG Strix X470-I Gaming transcend mini-ITX. Infused with all the essential ROG engineering ready for you to create a gaming rig that rivals anything built around a bigger board. Push performance to the limits with 5-Way optimization, and up the aesthetic ante with Aura Sync illumination. Go compact without compromise with ROG Strix X470-I Gaming and dominate your game!
Expansion Slots1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics / AMD 7th Generation A-series / Athlon X4 CPU))
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 3.1 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI
Internal Interfaces2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesWfM 2.0 support, Multilingual BIOS, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.0 support, ACPI 6.0 support
Sleep / Wake UpWake on LAN (WOL)
Hardware FeaturesJack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS TurboV, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Dual Intelligent Processors 5, LANGuard, GameFirst IV, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, Sonic Studio Link
Miscellaneous
Included AccessoriesCable ties, ASUS 2T2R Wi-Fi moving aerials, I/O back cover, 2 x M.2 screws, RGB (RGBW) LED strip extension cable, M.2 bracket, STRIX stickers
Cables Included4 x Serial ATA cable
Software IncludedDrivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Overwolf, ROG GameFirst IV, ASUS ROG RAMCache II, Antivirus
