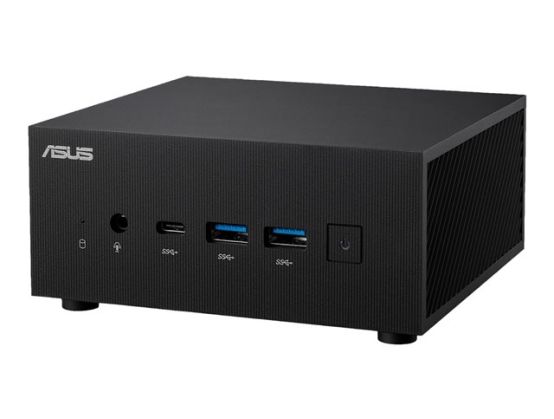

ASUS Mini PC PN52 B-S7056MD - Barebone - mini PC 1 x Ryzen 7 5800H / up to 4.4 GHz - RAM 0 GB - Radeon Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - eco black
Product DescriptionASUS ExpertCenter PN52 S5055MD - mini PC Ryzen 7 5800H 3.2 GHz - 0 GB - no HDD
TypePC barebone - mini PC
Processor1 x AMD Ryzen 7 5800H / 3.2 GHz (up to 4.4 GHz, (8-core)
Cache Memory16 MB
Cache Per Processor16 MB
RAM0 GB DDR4 SDRAM
Storage ControllerSATA (SATA 6Gb/s)
Hard DriveNo HDD
Optical StorageNo optical drive
Graphics ControllerAMD Radeon Graphics
Networking1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Bluetooth 5.2, Wi-Fi 6E
OS ProvidedNo operating system
ColourEco black
Dimensions (WxDxH)12 cm x 13 cm x 5.8 cm
Weight1 kg
Environmental StandardsEPEAT Silver
Extended Specification
General
TypePC barebone
Product Form FactorMini PC
ColourEco black
Processor / Chipset
CPUAMD Ryzen 7 5800H
Clock Speed3.2 GHz
Max Turbo Speed4.4 GHz
Number of Cores8-core
CPU Qty1
Max CPU Qty1
Cache Memory
Installed Size16 MB
Cache Per Processor16 MB
RAM
Installed Size0 GB
TechnologyDDR4 SDRAM
Effective Memory Speed3200 MHz
Rated Memory Speed3200 MHz
Form FactorSO-DIMM 260-pin
Slots2 (Total) / 2 (empty)
Hard Drive
TypeNo HDD
Storage Controller
Type1 x SATA
Controller Interface TypeSATA 6Gb/s
Optical Storage
TypeNo optical drive
Monitor
Monitor TypeNone.
Graphics Controller
Graphics ProcessorAMD Radeon Graphics
Video InterfacesHDMI, DisplayPort, USB-C
Networking
Wireless LAN SupportedYes
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
FeaturesDual stream (2x2)
Expansion / Connectivity
Interfaces2 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x headphones/microphone ¦ 1 x DisplayPort/USB-C 3.2 Gen 2 (Power Delivery) ¦ 2 x HDMI
