ASROCK

ASROCK INTEL Z790 TAICHI LITE DIMM 4 DDR5

Name: ASROCK INTEL Z790 TAICHI LITE DIMM 4 DDR5
Brand: ASROCK
SKU: 1TCPTMOT-005015
Price: 361.94 GBP
Availability: OutOfStock

SKU

1TCPTMOT-005015

Manufacture#: 90-MXBMF0-A0UAYZ

Be the first to review this product

£301.62

£361.94 inc VAT

Order by 15:00 and receive your order on Monday 3 Mar

Product details

Motherboard
extended ATX
LGA1700 Socket
Z790 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

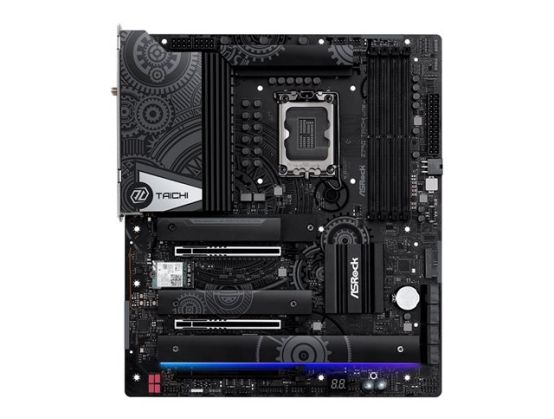

ASRock Z790 TAICHI LITE
Motherboard
extended ATX
LGA1700 Socket
Z790 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
Bluetooth, 2.5 Gigabit LAN, Wi-Fi 6
onboard graphics (CPU required)
HD Audio (5.1-channel)

Overview

ASRock Z790 TAICHI LITE - motherboard - extended ATX - LGA1700 Socket - Z790

Specification

Product Description ASRock Z790 TAICHI LITE - motherboard - extended ATX - LGA1700 Socket - Z790

Product Type Motherboard - extended ATX

Chipset Type Intel Z790

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 192 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, unbuffered

Storage Ports 8 x SATA-600 (RAID), 4 x Hyper M.2, 1 x Blazing M.2

USB / FireWire Ports 2 x USB4 + 2 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (5.1-channel)

LAN Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

General

Product Type Motherboard - extended ATX

Chipset Type Intel Z790

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 192 GB

Technology DDR5

Bus Clock 7000 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (5.1-channel)

Audio Codec Realtek ALC4082

Compliant Standards High Definition Audio

LAN

Network Controller Intel I219V / Killer E3100G / Killer AX1675

Network Interfaces Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 5

Interfaces 1 x HDMI ¦ 2 x Thunderbolt 4/USB4 ¦ 2 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x aerial ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (Gigabit Ethernet)

Internal Interfaces 1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x speaker - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type AMI

BIOS Features UEFI BIOS

Hardware Features ASRock Instant Flash, 8 Layer PCB, Clear CMOS Button, Debug LED, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Killer DoubleShot Pro, ASRock EZ Mode, Nichicon 12K Black Caps, Hi-Density Power Connectors, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ESS 9218 SABRE HiFi DAC, ASRock Hyper BCLK Engine, WIMA audio capacitors, Intel Hybrid Technology, ASRock Auto Driver Installer, 24+1+2 Phase Power Design, Enlarged Heatsink Armor

Miscellaneous

Included Accessories 4 x M.2 screws, wireless dongle USB bracket, ASRock WiFi 2.4/5/6 GHz aerial

Cables Included 4 x Serial ATA cable

Software Included ASRock A-Tuning, Killer Control Center

Compliant Standards ErP Ready, RoHS 2011/65/EU, HDCP 2.3, CEC Tier II, FCC Part 15 Subpart B

Width 30.5 cm

Depth 26.7 cm
