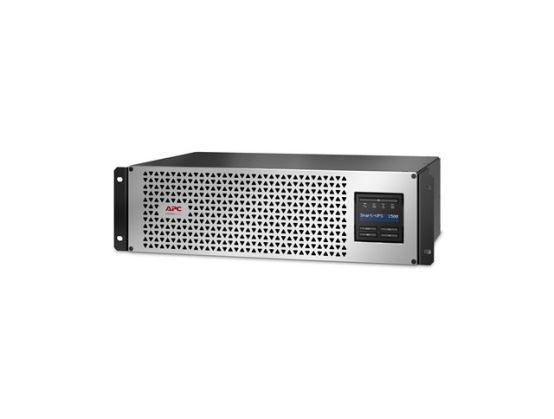

APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect - UPS (rack-mountable / external) - AC 230 V - 1.35 kW - 1500 VA - RS-232, USB - output connectors: 6 - 3U - for P/N: AR106SH4, AR106SH6, AR106V, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3106, AR3
Manufacture#: SMTL1500RMI3UC
£1517 .63
£1821.16 inc VAT
Order by 15:00 and receive your order on Monday 17 Mar
Product details
UPS (rack-mountable / external)
AC 230 V
1.35 kW
1500 VA
Payment options available at checkout
Main features
APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect
UPS (rack-mountable / external)
AC 230 V
1.35 kW
1500 VA
RS-232, USB
output connectors: 6
3U
for P/N: AR106SH4, AR106SH6, AR106V, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3106, AR3106SP
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6x IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Product Description
APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect - UPS - 1.35 kW - 1500 VA
Device Type
UPS - rack-mountable / external
Rack Size
3U
Weight
19.5 kg
Input Voltage
AC 230 V
Output Voltage
AC 230 V ± 5%
Power Capacity
1.35 kW / 1500 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
6 x power IEC 60320 C13
Battery
Lithium ion
Networking
RS-232, USB
Dimensions (WxDxH)
43.8 cm x 30.2 cm x 13.1 cm
Manufacturer Warranty
5-year warranty
Designed For
P/N: AR106SH4, AR106SH6, AR106V, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
3U
Power Device
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 286 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Provided
50/60 Hz ± 3Hz
Frequency Required
50/60 Hz ± 3Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
6 x power IEC 60320 C13
Output Voltage
AC 230 V ± 5% - 50/60 Hz
Power Capacity
1.35 kW / 1500 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
680 Joules
Battery
Technology
Lithium ion
Recharge Time
3 hours
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x management (USB)
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Miscellaneous
Cables Included
Serial cable - external ¦ USB cable - external
Equipment Protection Value
150000 US Dollars
Features
Audible alarm, LCD display
Compliant Standards
REACH, RoHS, CSA, EAC, GS, IEC 62040-1-1, IEC 62040-1-2, IEC 62040-2, RCM, UL 1973, IP20
Software / System Requirements
Software Included
APC PowerChute Business Edition
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Sound Emission
45 dB
Dimensions & Weight
Width
43.8 cm
Depth
30.2 cm
Height
13.1 cm
Weight
19.5 kg
Dimensions & Weight (Shipping)
Shipping Width
58.4 cm
Shipping Depth
44.8 cm
Shipping Height
27.9 cm
Shipping Weight
22.68 kg
Compatibility Information
Designed For
P/N: AR106SH4, AR106SH6, AR106V, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP
